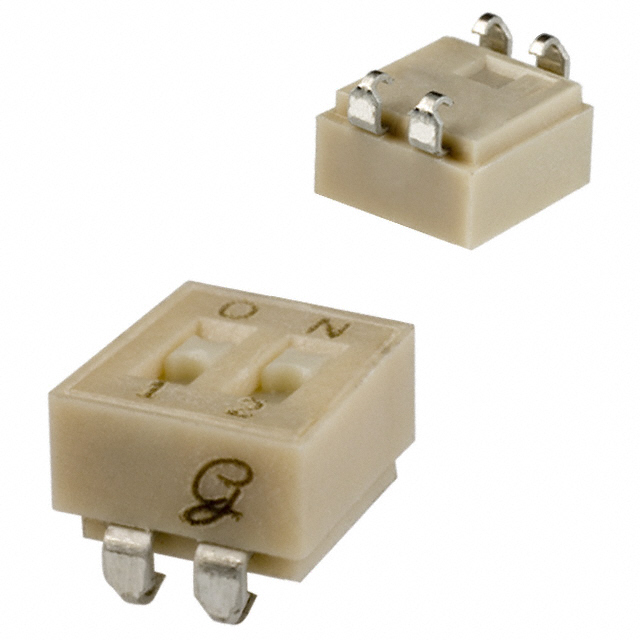

90HBJ02PRT

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Electrical Life	Length	Length	Actuator Level	Number of Positions	Circuit	Features	Termination Style	Washable	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Type	Mechanical Life	Contact Material	Pitch [x]	Pitch	Pitch [x]	Body Material	Actuator Type	Contact Finish	Voltage Rating
Grayhill Inc. 90HBJ02PRT	2000 Steps	0.27 in	6.86 mm	Flush Recessed	2	SPST	Tape Seal	J Lead		85 °C	-40 °C	25 mA	Surface Mount	2000 Cycles	Copper Alloy	0.1 in	Full	2.54 mm	Thermoplastic	Slide (Standard)	Gold	24 VDC
Grayhill Inc. 90HBJ02PT	2000 Steps	0.27 in	6.86 mm	Flush Recessed	2	SPST	Tape Seal	J Lead		85 °C	-40 °C	25 mA	Surface Mount	2000 Cycles	Copper Alloy	0.1 in	Full	2.54 mm	Thermoplastic	Slide (Standard)	Gold	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	750	$ 3.66

General part information

Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
