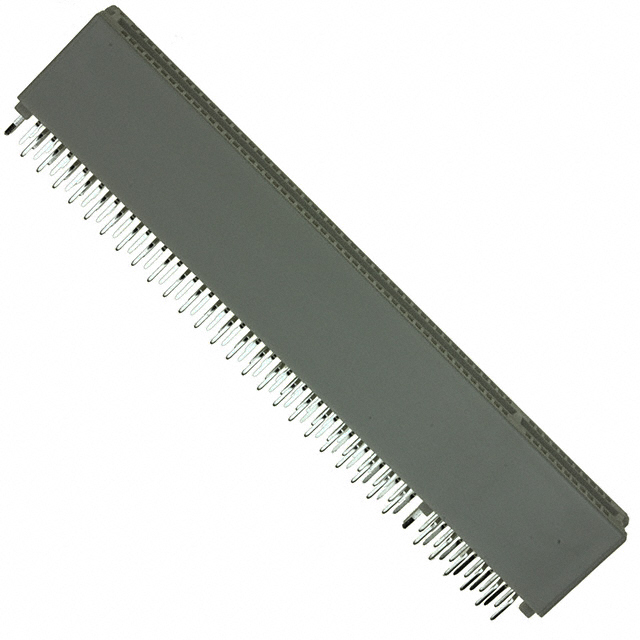

TRXB060DKHN-T20

Obsolete

Sullins Connector Solutions

CONN PCI CARDEDGE FML 120P 0.050

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN PCI CARDEDGE FML 120P 0.050

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Number of Positions	Color	Gender	Contact Finish	Contact Type	Mounting Type	Contact Material	Card Type	Pitch [x]	Pitch [x]	Number of Rows	Termination	Material - Insulation
Sullins Connector Solutions TRXB060DKHN-T20	85 °C	-55 °C	Dual	0.76 Ám	30 Áin	0.062 in	1.57 mm	120	White	Female	Gold	Cantilever	Through Hole	Phosphor Bronze	PCI™	0.05 in	1.27 mm	2	Solder	Thermoplastic Glass Filled
Sullins Connector Solutions TRXB060DKHN-T20RC	85 °C	-55 °C	Dual	0.76 Ám	30 Áin	0.062 in	1.57 mm	120		Female	Gold	Cantilever	Through Hole	Phosphor Bronze	PCI 5V 64 Bit	0.05 in	1.27 mm	2	Solder	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

120 Position Female Connector PCI™ Gold 0.050" (1.27mm) White
