030-8581-029

Active

ITT Cannon, LLC

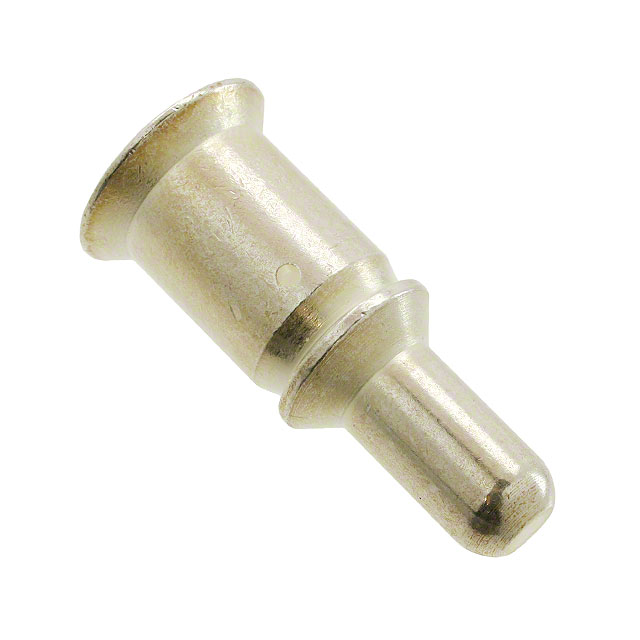

CONTACT PIN SZ 0 CRIMP SILVER

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONTACT PIN SZ 0 CRIMP SILVER

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Contact Finish	Type	Contact Size	Contact Type	Wire Gauge or Range - AWG	Contact Material	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm²	Termination Finish	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Size
ITT Cannon, LLC 030-8613-000	196.9 µin	5 µm	Crimp	Silver	Machined Signal	4 4	Pin	4 AWG	Copper Alloy
ITT Cannon, LLC 030-8587-010	196.9 µin	5 µm	Crimp	Silver	Machined Signal	16	Pin		Copper Alloy	14 AWG	16 AWG
ITT Cannon, LLC 030-8587-016	19.7 µin	0.5 µm	Crimp	Gold	Machined Signal	16	Pin		Copper Alloy	14 AWG	16 AWG
ITT Cannon, LLC 030-8581-029			Crimp	Silver	Power Machined	0 (3)	Pin		Copper Alloy			50 mm²	Copper Alloy
ITT Cannon, LLC 030-8581-031			Crimp	Silver	Power Machined	0 (3)	Pin	4 AWG	Brass			25 mm²	Brass
ITT Cannon, LLC 030-8613-006
ITT Cannon, LLC 030-8587-030	196.9 µin	5 µm	Crimp	Silver	Machined Signal	16	Pin		Copper Alloy	22 AWG	26 AWG			0.38 mm²	0.14 mm²
ITT Cannon, LLC 030-8586-005	50 µin	1.27 µm	Crimp	Gold	Machined Signal		Pin		Copper Alloy	16 AWG	18 AWG					16S
ITT Cannon, LLC 030-8590-000	196.9 µin	5 µm	Crimp	Silver	Machined Signal	8	Pin		Copper Alloy			10 mm²
ITT Cannon, LLC 030-8589-000	196.9 µin	5 µm	Crimp	Silver	Machined Signal	8	Pin	10 AWG	Copper Alloy			6 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Contact Size 0 Crimp Silver
