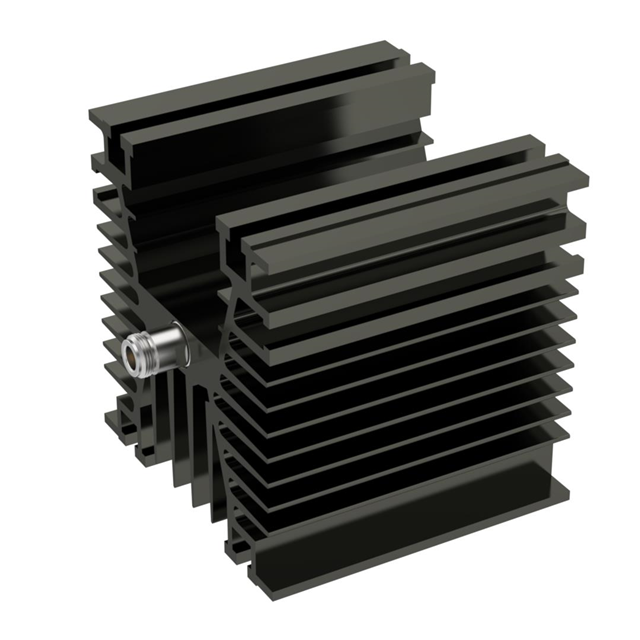

R404781020

Active

Radiall USA, Inc.

TERMINATION: N F 6 GHZ 200W

Deep-Dive with AI

Search across all available documentation for this part.

R404781020

Active

Radiall USA, Inc.

TERMINATION: N F 6 GHZ 200W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R404781020

Body Finish	White Bronze
Body Material	Brass
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

R40478 Series

Part	Body Material	Mounting Type	Connector Type	Frequency - Max [Max]	Contact Finish	Contact Material	Dielectric Material	Impedance	Connector Style	Body Finish
Radiall USA, Inc. R404782000	Stainless Steel	Cap Free Hanging	Male Pin Plug	6000 MHz	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	TNC
Radiall USA, Inc. R404781120	Brass	Panel Mount Square Flange	Female Socket Jack	6000 MHz	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	N Type	White Bronze
Radiall USA, Inc. R404782020	Stainless Steel	Cap Free Hanging	Male Pin Plug	6000 MHz	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	TNC
Radiall USA, Inc. R404783020	Stainless Steel	Cap Free Hanging	Female Socket Jack	6000 MHz	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	TNC
Radiall USA, Inc. R404787000	Brass	Cap Free Hanging	Female Socket Jack	6000 MHz	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	7/16 DIN	White Bronze
Radiall USA, Inc. R404786000	Brass	Cap Free Hanging	Male Pin Plug	6000 MHz	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	7/16 DIN	White Bronze
Radiall USA, Inc. R404783120	Stainless Steel	Panel Mount Square Flange	Female Socket Jack	6000 MHz	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	TNC
Radiall USA, Inc. R404781020	Brass	Cap Free Hanging	Female Socket Jack	6000 MHz	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	N Type	White Bronze
Radiall USA, Inc. R404780020	Stainless Steel	Cap Free Hanging	Male Pin Plug	6000 MHz	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	N Type
Radiall USA, Inc. R404782120	Stainless Steel	Panel Mount Square Flange	Male Pin Plug	6000 MHz	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	TNC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1107.07

Description

General part information

R40478 Series

Terminator Coax Connector Jack, Female Socket N Type 50 Ohms

Documents

Technical documentation and resources

No documents available
