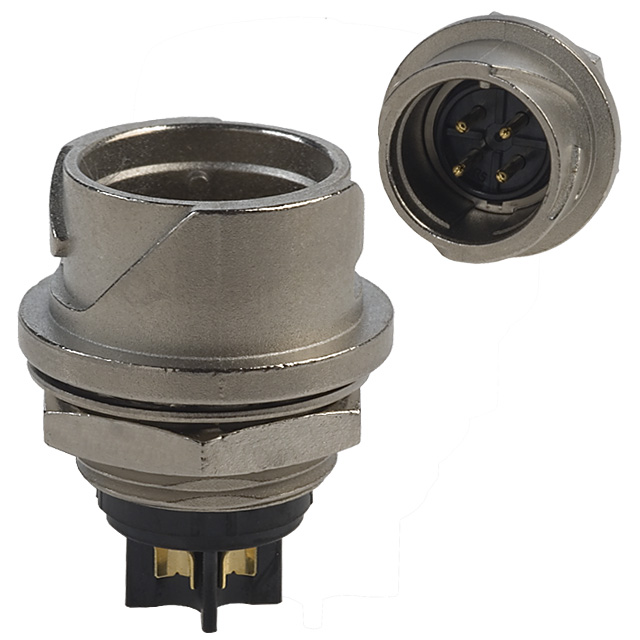

LF10WBR-4P

Active

Hirose Electric USA, Inc.

CONN RCPT MALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT MALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	LF10WBR-4P

Applications	Telecommunications, Industrial
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10
Voltage Rating	125 VAC

Part	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Ingress Protection	Shell Size - Insert	Contact Finish - Mating	Shell Material	Orientation	Applications	Current Rating (Amps)	Fastening Type	Voltage Rating	Contact Material	Connector Type	Shell Finish	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Material Flammability Rating	Insert Material
Hirose Electric USA, Inc. LF10WBR-4P	Metal	-25 °C	85 °C	Bulkhead - Rear Side Nut	IP67/IP68 - Dust Tight Waterproof	10	Gold	Zinc Alloy	Keyed	Industrial Telecommunications	10 A	Bayonet Lock	125 VAC	Copper Alloy	Male Pins Receptacle	Nickel	4	0.203 Ám	8 Áin	Silver	UL94 V-0	Polyphenylene Sulfide (PPS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
