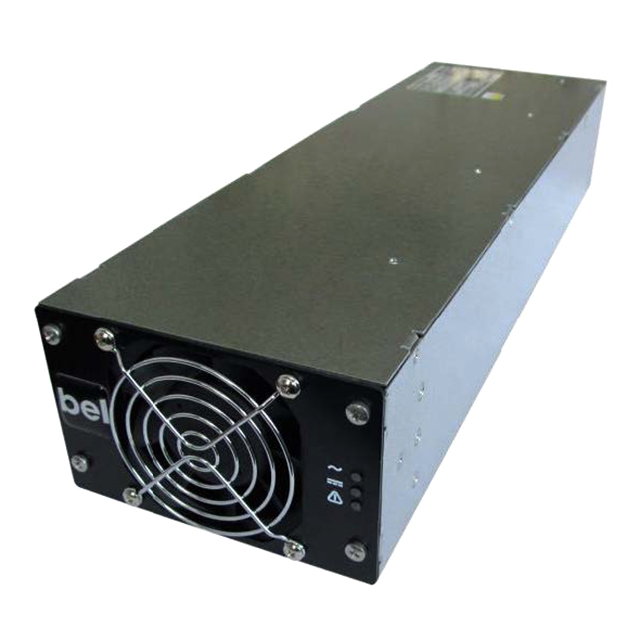

TXP4000-1110G
ActiveEOS Power India Private Ltd
AC/DC CONVERTER 110V
Deep-Dive with AI
Search across all available documentation for this part.
TXP4000-1110G
ActiveEOS Power India Private Ltd
AC/DC CONVERTER 110V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TXP4000-1110G |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 36.5 A |
| Efficiency | 93 % |
| Features | Adjustable Output, PFC |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 450 mm |
| Size / Dimension [x] | 17.72 in |
| Size / Dimension [y] | 5.31 in |
| Size / Dimension [y] | 135 mm |
| Size / Dimension [z] | 3.35 in |
| Size / Dimension [z] | 85 mm |
| Type | Front End |
| Voltage - Input [Max] | 528 VAC |
| Voltage - Input [Min] | 350 VAC |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 110 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2575.00 | |
Description
General part information
TXP4000 Series
Front End AC DC Converters 1 Output 110V 350 ~ 528 VAC (3 Phase) Input
