R24W-0100
ActiveOK INDUSTRIES

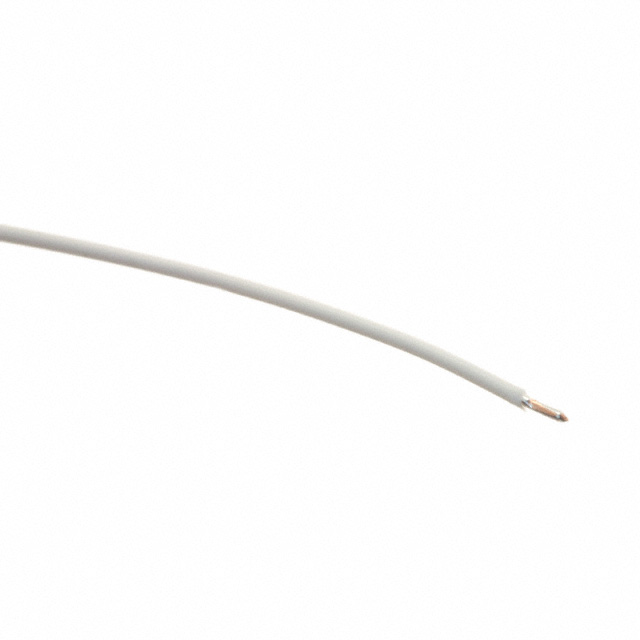

WIRE WW 24AWG PVDF WHITE 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R24W-0100
ActiveOK INDUSTRIES
WIRE WW 24AWG PVDF WHITE 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R24W-0100 |
|---|---|
| Conductor Diameter [diameter] | 0.019 in |
| Conductor Diameter [diameter] | 0.5 mm |
| Conductor Material | Copper, Bare |
| Conductor Plating | Silver |
| Jacket (Insulation) Diameter [diameter] | 0.03 in |
| Jacket (Insulation) Diameter [diameter] | 0.76 mm |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) |
| Jacket (Insulation) Thickness | 0.005 in |
| Jacket (Insulation) Thickness | 0.13 mm |
| Length | 30.5 m |
| Length [x] | 100 ft |
| Operating Temperature | 105 C |
| Ratings | UL Style 1422 |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Roll | 1 | $ 35.24 | |
| 2 | $ 33.55 | |||
| 3 | $ 32.59 | |||
| 5 | $ 31.43 | |||
| 7 | $ 30.68 | |||
| 10 | $ 29.90 | |||
| 25 | $ 28.95 | |||
Description
General part information
R24W Series
Wire Wrap 24 AWG White Polyvinylidene Fluoride (PVDF) 100' (30.5m)
Documents
Technical documentation and resources
