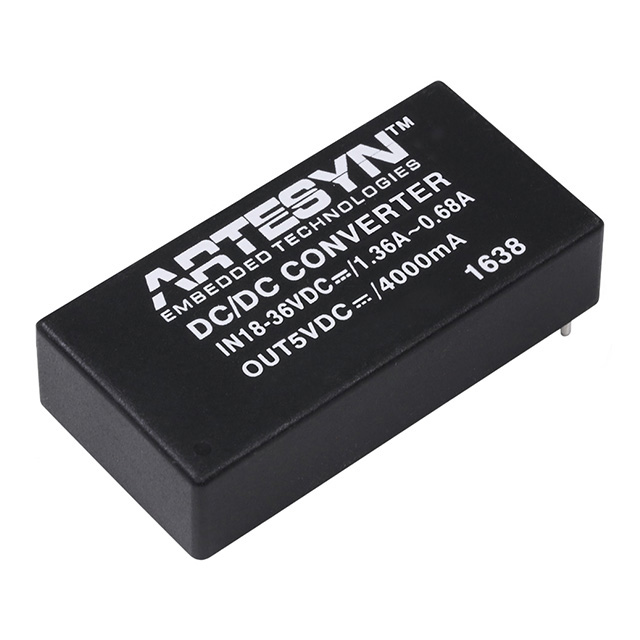

AEE04A12-M
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 5V 20W
Deep-Dive with AI
Search across all available documentation for this part.
AEE04A12-M
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 5V 20W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AEE04A12-M |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | 85 % |
| Features | SCP, OCP, OVP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | 5-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 12 mm |
| Size / Dimension [z] | 0.47 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 61.91 | |
Description
General part information
AEE04A Series
Isolated Module DC DC Converter 1 Output 5V 4A 9V - 18V Input
Documents
Technical documentation and resources
