EVAL-LTC6227MS8E

Active

Analog Devices

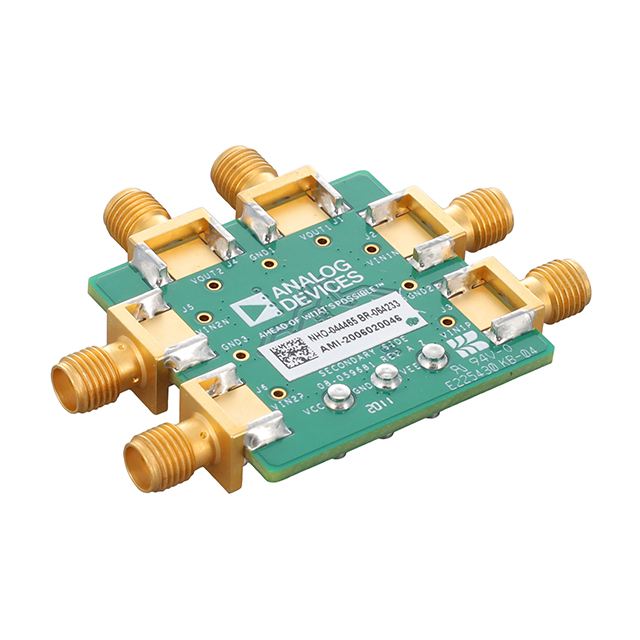

EVAL BOARD FOR LTC6227

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EVAL-LTC6227MS8E

Active

Analog Devices

EVAL BOARD FOR LTC6227

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EVAL-LTC6227MS8E

-3db Bandwidth	330 MHz
Amplifier Type	General Purpose
Board Type	Fully Populated
Channels per IC	2 - Dual
Current - Output / Channel	64 mA
Current - Supply (Main IC)	5.5 mA
Output Type	Single-Ended, Rail-to-Rail
Slew Rate	180 V/µs
Supplied Contents	Board(s)
Utilized IC / Part	LTC6227
Voltage - Supply, Single/Dual (±) [Max]	5.875 V, 11.75 V
Voltage - Supply, Single/Dual (±) [Min]	2.8 V, -1.4 V

LTC6227 Series

Part	Number of Circuits	Current - Input Bias	Current - Output / Channel	Amplifier Type	Slew Rate	-3db Bandwidth	Operating Temperature [Max]	Operating Temperature [Min]	Gain Bandwidth Product	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	Current - Supply	Package / Case	Package / Case [custom]	Supplier Device Package	Mounting Type	Voltage - Supply Span (Min) [Min]	Output Type	Board Type	Utilized IC / Part	Current - Supply (Main IC)	Supplied Contents	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Channels per IC
Analog Devices LTC6227HMS8E#TRPBF	2	8.4 µA	64 mA	General Purpose	180 V/µs	330 MHz	125 °C	-40 °C	420 MHz	11.75 V	20 çV	5.5 mA	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	8-MSOP-EP	Surface Mount	2.8 V	Rail-to-Rail
Analog Devices LTC6227IMS8E#PBF	2	8.4 µA	64 mA	General Purpose	180 V/µs	330 MHz	85 °C	-40 °C	420 MHz	11.75 V	20 çV	5.5 mA	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	8-MSOP-EP	Surface Mount	2.8 V	Rail-to-Rail
Analog Devices LTC6227IDD#PBF	2	8.4 µA	64 mA	General Purpose	180 V/µs	330 MHz	85 °C	-40 °C	420 MHz	11.75 V	20 çV	5.5 mA	10-WFDFN Exposed Pad		10-DFN (3x3)	Surface Mount	2.8 V	Rail-to-Rail
Analog Devices LTC6227HDD#TRPBF	2	8.4 µA	64 mA	General Purpose	180 V/µs	330 MHz	125 °C	-40 °C	420 MHz	11.75 V	20 çV	5.5 mA	10-WFDFN Exposed Pad		10-DFN (3x3)	Surface Mount	2.8 V	Rail-to-Rail
Analog Devices EVAL-LTC6227MS8E			64 mA	General Purpose	180 V/µs	330 MHz												Rail-to-Rail Single-Ended	Fully Populated	LTC6227	5.5 mA	Board(s)	5.875 V 11.75 V	-1.4 V 2.8 V	2 - Dual
Analog Devices LTC6227HDD#PBF	2	8.4 µA	64 mA	General Purpose	180 V/µs	330 MHz	125 °C	-40 °C	420 MHz	11.75 V	20 çV	5.5 mA	10-WFDFN Exposed Pad		10-DFN (3x3)	Surface Mount	2.8 V	Rail-to-Rail
Analog Devices LTC6227IDD#TRPBF	2	8.4 µA	64 mA	General Purpose	180 V/µs	330 MHz	85 °C	-40 °C	420 MHz	11.75 V	20 çV	5.5 mA	10-WFDFN Exposed Pad		10-DFN (3x3)	Surface Mount	2.8 V	Rail-to-Rail

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 69.45

Description

General part information

LTC6227 Series

LTC6227 2 - Dual Channels per IC General Purpose Amplifier Evaluation Board
