842-051-541-112
ActiveEDAC Inc.

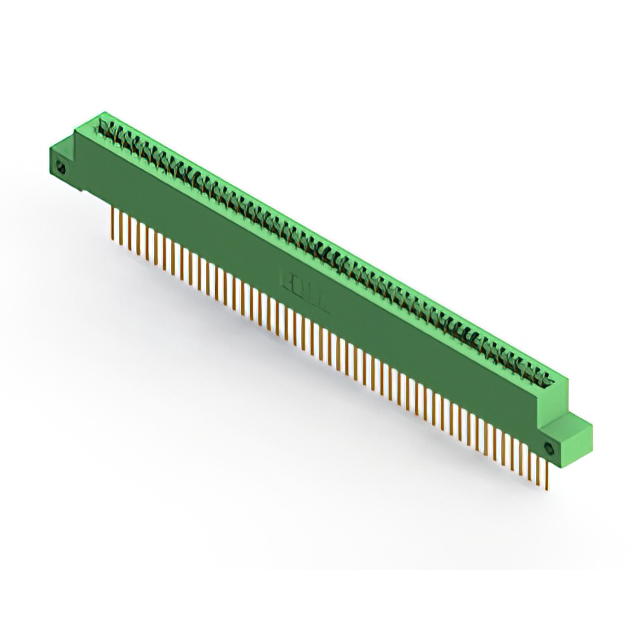

CONN EDGE SINGLE FML 51POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-051-541-112
ActiveEDAC Inc.
CONN EDGE SINGLE FML 51POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-051-541-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 51 |
| Number of Positions/Bay/Row [custom] | 51 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
842-051 Series
| Part | Number of Positions | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Termination Rows | Material - Insulation | Card Type | Read Out | Contact Finish | Color | Contact Material | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Number of Rows | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 51 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 51 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Through Hole | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Gold | Green | Copper Alloy | Cantilever | 125 °C | -40 °C | Solder | 1 | 10 Áin | 0.25 Ám |
EDAC Inc. | 51 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 51 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Through Hole | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Gold | Green | Copper Alloy | Cantilever | 125 °C | -40 °C | Wire Wrap | 1 | 10 Áin | 0.25 Ám |
EDAC Inc. | 51 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 51 | Through Hole | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Gold | Green | Copper Alloy | Cantilever | 125 °C | -40 °C | Wire Wrap | 1 | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 51 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 51 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Through Hole | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Gold | Green | Copper Alloy | Cantilever | 125 °C | -40 °C | Wire Wrap | 1 | 10 Áin | 0.25 Ám |
EDAC Inc. | 51 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 51 | Flush Mount M3 Threaded Insert Top Opening | Through Hole Right Angle | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Gold | Green | Copper Alloy | Cantilever | 125 °C | -40 °C | Solder | 1 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 51 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 51 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Through Hole Right Angle | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Gold | Green | Copper Alloy | Cantilever | 125 °C | -40 °C | Solder | 1 | 10 Áin | 0.25 Ám |
EDAC Inc. | 51 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 51 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Through Hole | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Gold | Green | Copper Alloy | Cantilever | 125 °C | -40 °C | Wire Wrap | 1 | 10 Áin | 0.25 Ám |
EDAC Inc. | 51 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 51 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Through Hole | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Gold | Green | Copper Alloy | Cantilever | 125 °C | -40 °C | Solder | 1 | 10 Áin | 0.25 Ám |
EDAC Inc. | 51 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 51 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Through Hole | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Gold | Green | Copper Alloy | Cantilever | 125 °C | -40 °C | Solder | 1 | 10 Áin | 0.25 Ám |
EDAC Inc. | 51 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 51 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Gold | Green | Copper Alloy | Cantilever | 125 °C | -40 °C | Solder | 1 | 10 Áin | 0.25 Ám |
