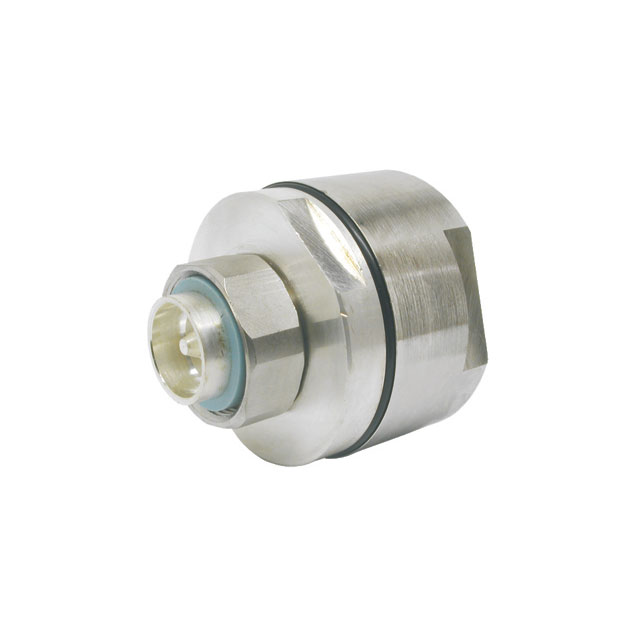

EZ-1700-716MC

Active

Amphenol Times Microwave Systems

7/16 DIN MALE CLAMP CONNECTOR, P

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

7/16 DIN MALE CLAMP CONNECTOR, P

Technical Specifications

Parameters and characteristics for this part

Specification	EZ-1700-716MC

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-1700
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	7/16 DIN
Connector Type	Male Pin, Plug
Contact Termination	Press-Fit
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Clamp

Part	Body Finish	Connector Style	Insertion Loss	Center Contact Material	Connector Type	Impedance	Dielectric Material	Body Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Mating Cycles	Shield Termination	Contact Termination	Number of Ports	Cable Group	Frequency - Max [Max]	Mounting Type
Amphenol Times Microwave Systems EZ-1700-716MC	White Bronze	7/16 DIN	0.1 dB	Brass	Male Pin Plug	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Silver	85 °C	-40 °C	Gold	500	Clamp	Press-Fit	1	LMR-1700	3 GHz	Free Hanging (In-Line)
Amphenol Times Microwave Systems EZ-1700-NFC	White Bronze	N Type	0.1 dB	Beryllium Copper	Female Socket Jack	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Silver	155 °C	-55 °C	Tin	500	Clamp	Press-Fit	1	LMR-1700	3 GHz	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 369.07

General part information

7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Press-Fit
