ULP180-0030

Active

EOS Power India Private Ltd

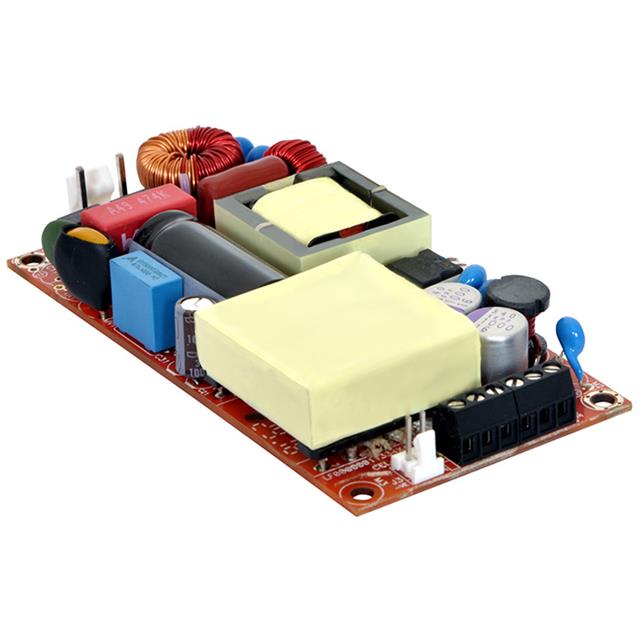

AC/DC CONVERTER 30V 120W

Deep-Dive with AI

Search across all available documentation for this part.

ULP180-0030

Active

EOS Power India Private Ltd

AC/DC CONVERTER 30V 120W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ULP180-0030

Applications	ITE (Commercial)
Approval Agency	cUL, CE, UL, CB, NEMKO
Current - Output 1	4 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	120 W, 180 W
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	63.5 mm
Size / Dimension [y]	2.5 in
Size / Dimension [z]	0.75 in
Size / Dimension [z]	19.1 mm
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	30 V

ULP180 Series

Part	Voltage - Isolation	Number of Outputs	Efficiency	Type	Mounting Type	Applications	Voltage - Output 1	Features	Power (Watts)	Approval Agency	Current - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	For Use With/Related Products	Accessory Type
EOS Power India Private Ltd ULP180-0348	3000 V	1	92 %	Open Frame	Chassis Mount	ITE (Commercial)	48 V	Adjustable Output PFC Standby Output Universal Input	120 W 180 W	CB CE cUL NEMKO UL	2.5 A	4 in	63.5 mm	101.6 mm	2.5 in	0.75 in	19.1 mm
EOS Power India Private Ltd ULP180-0024	3000 V	1	90 %	Open Frame	Chassis Mount	ITE (Commercial)	24 V	Adjustable Output PFC Standby Output Universal Input	120 W 180 W	CB CE cUL NEMKO UL	5 A	4 in	63.5 mm	101.6 mm	2.5 in	0.75 in	19.1 mm
EOS Power India Private Ltd ULP180-0330	3000 V	1	90 %	Open Frame	Chassis Mount	ITE (Commercial)	30 V	Adjustable Output PFC Standby Output Universal Input	120 W 180 W	CB CE cUL NEMKO UL	4 A	4 in	63.5 mm	101.6 mm	2.5 in	0.75 in	19.1 mm
EOS Power India Private Ltd ULP180-1348	3000 V	1	92 %	Open Frame	Chassis Mount	ITE (Commercial)	48 V	Adjustable Output PFC Standby Output Universal Input	120 W 180 W	CB CE cUL NEMKO UL	2.5 A	4 in	50.8 mm	101.6 mm	2 in	0.75 in	19.1 mm
EOS Power India Private Ltd ULP180-0324	3000 V	1	90 %	Open Frame	Chassis Mount	ITE (Commercial)	24 V	Adjustable Output PFC Standby Output Universal Input	120 W 180 W	CB CE cUL NEMKO UL	5 A	4 in	63.5 mm	101.6 mm	2.5 in	0.75 in	19.1 mm
EOS Power India Private Ltd ULP180-1358	3000 V	1	92 %	Open Frame	Chassis Mount	ITE (Commercial)		Adjustable Output PFC Standby Output Universal Input	120 W 180 W	CB CE cUL NEMKO UL	2.07 A	4 in	50.8 mm	101.6 mm	2 in	0.75 in	19.1 mm
EOS Power India Private Ltd ULP180-1312	3000 V	1	88 %	Open Frame	Chassis Mount	ITE (Commercial)	12 V	Adjustable Output PFC Standby Output Universal Input	120 W 180 W	CB CE cUL NEMKO UL	10 A	4 in	50.8 mm	101.6 mm	2 in	0.75 in	19.1 mm
EOS Power India Private Ltd ULP180-CK																		ULP180 Series	Cover Assembly
EOS Power India Private Ltd ULP180-0030	3000 V	1	90 %	Open Frame	Chassis Mount	ITE (Commercial)	30 V	Adjustable Output PFC Standby Output Universal Input	120 W 180 W	CB CE cUL NEMKO UL	4 A	4 in	63.5 mm	101.6 mm	2.5 in	0.75 in	19.1 mm
EOS Power India Private Ltd ULP180-1330	3000 V	1	90 %	Open Frame	Chassis Mount	ITE (Commercial)	30 V	Adjustable Output PFC Standby Output Universal Input	120 W 180 W	CB CE cUL NEMKO UL	4 A	4 in	50.8 mm	101.6 mm	2 in	0.75 in	19.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 96.78
		5	$ 93.81
		10	$ 90.83
		25	$ 87.85
		96	$ 81.89

Description

General part information

ULP180 Series

Open Frame AC DC Converters 1 Output 30V 80 ~ 264 VAC, 390VDC Input

Documents

Technical documentation and resources

No documents available
