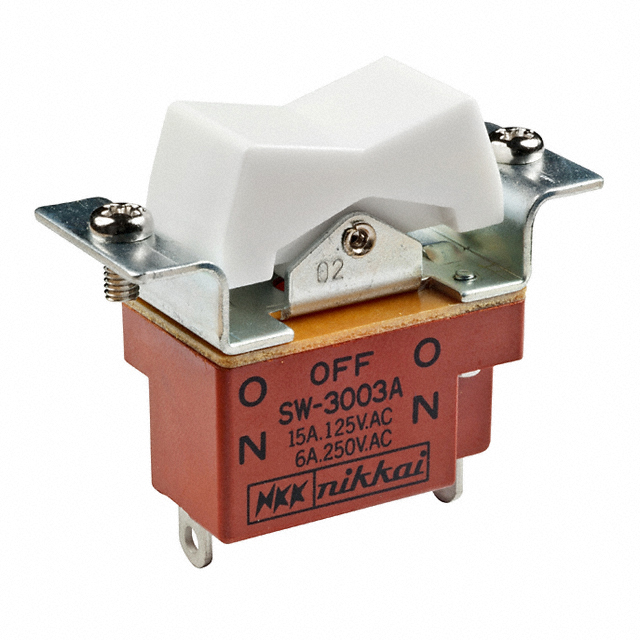

SW3003A

Active

NKK Switches

ROCKER SWITCH, ON-OFF-ON, SPDT, NON ILLUMINATED, PANEL MOUNT, WHITE, SW SERIES

Search across all available documentation for this part.

Active

NKK Switches

ROCKER SWITCH, ON-OFF-ON, SPDT, NON ILLUMINATED, PANEL MOUNT, WHITE, SW SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	SW3003A

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	SPDT
Color - Actuator/Cap	White
Current Rating (Amps)	15 A
Electrical Life	25000 Steps
Mounting Type	Panel Mount, Flange
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Marking	Color - Actuator/Cap	Approval Agency	Current Rating (Amps)	Electrical Life	Voltage Rating - AC	Termination Style	Mounting Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage Rating - DC	Circuit	Switch Function	Actuator Type
NKK Switches SW3003A	No Marking	White	CSA UL	15 A	25000 Steps	125 V	Solder Lug	Flange Panel Mount	-10 °C	158 °F	30 V	SPDT	On-Off-On	Concave (Standard V)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 15A (AC/DC) 125 V Panel Mount, Flange
