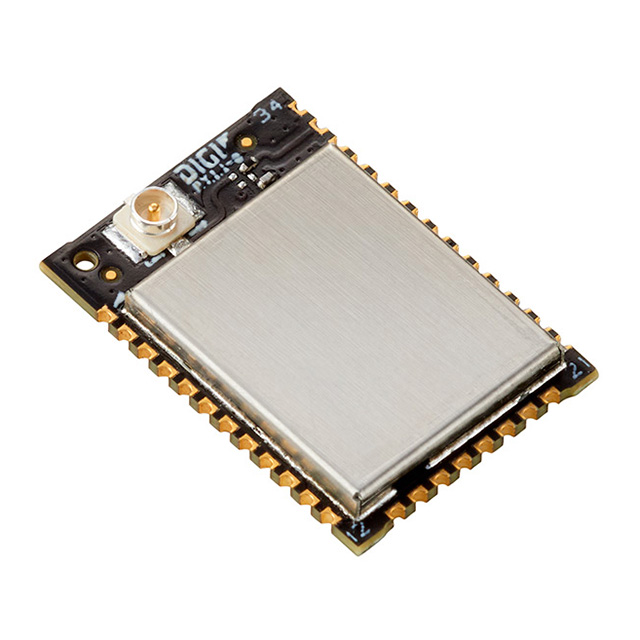

XB3-24AUM

Active

Digi

RF TXRX MODULE 802.15.4U.FL SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMap Your Digi XBee IoT Network with Digi XCTU Digi XBee 3® 802.15.4 Migration Guide

XB3-24AUM

Active

Digi

RF TXRX MODULE 802.15.4U.FL SMD

Deep-Dive with AI

DocumentsMap Your Digi XBee IoT Network with Digi XCTU Digi XBee 3® 802.15.4 Migration Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XB3-24AUM

Antenna Type	Antenna Not Included, U.FL
Current - Receiving	17 mA
Current - Transmitting	135 mA
Data Rate	250 KBd
Frequency	2.4 GHz
Memory Size	128 kB, 1 MB
Modulation	DSSS
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	34-SMD Module
Power - Output	19 dBm
Protocol	Bluetooth v4.0, Zigbee®
RF Family/Standard	802.15.4
Sensitivity	-103 dBm
Serial Interfaces	UART, I2C, SPI
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.1 V

XB3-24 Series

Part	Current - Receiving	Sensitivity	RF Family/Standard	Serial Interfaces	Power - Output	Memory Size	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Modulation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting	Protocol	Frequency	Antenna Type	Package / Case	Utilized IC / Part
Digi XB3-24ACM-J	17 mA	-103 dBm	802.15.4	I2C SPI UART	8 dBm	1 MB 128 kB	250 KBd	2.1 V	3.6 V	DSSS	Surface Mount	85 °C	-40 °C	135 mA	Bluetooth v4.0 Zigbee®	2.4 GHz	Integrated Chip	34-SMD Module
Digi XB3-24ARM-J	15 mA	-103 dBm	802.15.4	I2C SPI UART	8 dBm	1 MB 128 kB	250 KBd	2.1 V	3.6 V	DSSS	Surface Mount	85 °C	-40 °C	40 mA	Bluetooth v4.0 Zigbee®	2.4 GHz	Antenna Not Included Castellation	34-SMD Module
Digi XB3-24Z8PS-J	15 mA	-103 dBm	802.15.4	I2C SPI UART	8 dBm	1 MB 128 kB	250 KBd	2.1 V	3.6 V	DSSS	Surface Mount	85 °C	-40 °C	40 mA	Zigbee®	2.4 GHz	Integrated Trace	34-SMD Module	EFR32MG
Digi XB3-24Z8PT-J	15 mA	-103 dBm	802.15.4	I2C SPI UART	8 dBm	1 MB 128 kB	250 KBd	2.1 V	3.6 V	DSSS	Through Hole	85 °C	-40 °C	40 mA	Zigbee®	2.4 GHz	Integrated Trace	Module	EFR32MG
Digi XB3-24Z8RS	15 mA	-103 dBm	802.15.4	I2C SPI UART	19 dBm	1 MB 128 kB	250 KBd	2.1 V	3.6 V	DSSS	Surface Mount	85 °C	-40 °C	135 mA	Zigbee®	2.4 GHz	Integrated Trace	37-SMD Module	EFR32MG
Digi XB3-24Z8PT	15 mA	-103 dBm	802.15.4	I2C SPI UART	19 dBm	1 MB 128 kB	250 KBd	2.1 V	3.6 V	DSSS	Through Hole	85 °C	-40 °C	135 mA	Zigbee®	2.4 GHz	Integrated Trace	Module	EFR32MG
Digi XB3-24Z8US	15 mA	-103 dBm	802.15.4	I2C SPI UART	19 dBm	1 MB 128 kB	250 KBd	2.1 V	3.6 V	DSSS	Surface Mount	85 °C	-40 °C	135 mA	Zigbee®	2.4 GHz	Antenna Not Included U.FL	34-SMD Module	EFR32MG
Digi XB3-24Z8RM-J	15 mA	-103 dBm	802.15.4	I2C SPI UART	8 dBm	1 MB 128 kB	250 KBd	2.1 V	3.6 V	DSSS	Surface Mount	85 °C	-40 °C	40 mA	Zigbee®	2.4 GHz	Antenna Not Included Castellation	34-SMD Module	EFR32MG
Digi XB3-24AUM	17 mA	-103 dBm	802.15.4	I2C SPI UART	19 dBm	1 MB 128 kB	250 KBd	2.1 V	3.6 V	DSSS	Surface Mount	85 °C	-40 °C	135 mA	Bluetooth v4.0 Zigbee®	2.4 GHz	Antenna Not Included U.FL	34-SMD Module
Digi XB3-24DMPT																	PCB Trace

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 22.39

Description

General part information

XB3-24 Series

802.15.4 Bluetooth v4.0, Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
