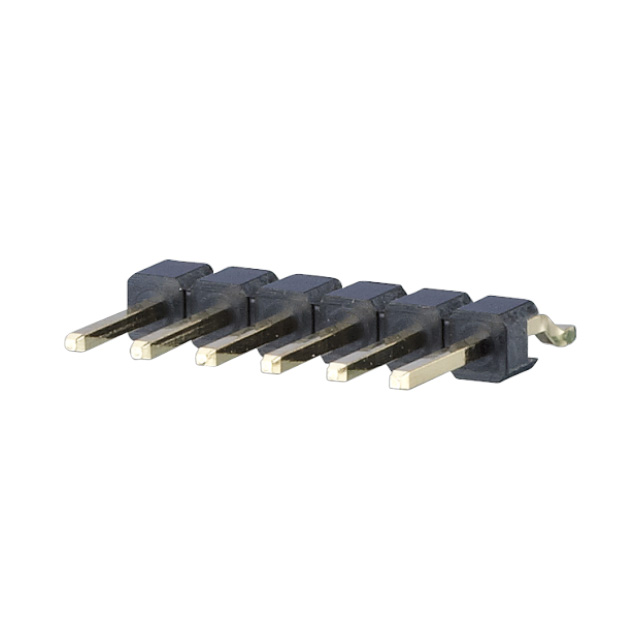

PM20206HBNN

Active

METZ CONNECT USA Inc.

PIN HEADER, SMT, SINGLE ROW, .10

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

PIN HEADER, SMT, SINGLE ROW, .10

Technical Specifications

Parameters and characteristics for this part

Specification	PM20206HBNN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polyethylene
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

Part	Insulation Material	Number of Rows	Fastening Type	Contact Type	Number of Positions Loaded	Mounting Type	Shrouding	Termination	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Length - Mating	Contact Length - Mating	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Material	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating
METZ CONNECT USA Inc. PM20206HBNN	Polyethylene	1	Push-Pull	Male Pin	All	Surface Mount Right Angle	Unshrouded	Solder	Black	-40 °C	105 ░C	Square	3 mm	0.118 in	6	Header	0.1 in	2.54 mm	Gold	Copper Alloy	0.098 in	2.5 mm	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 6 position 0.100" (2.54mm)
