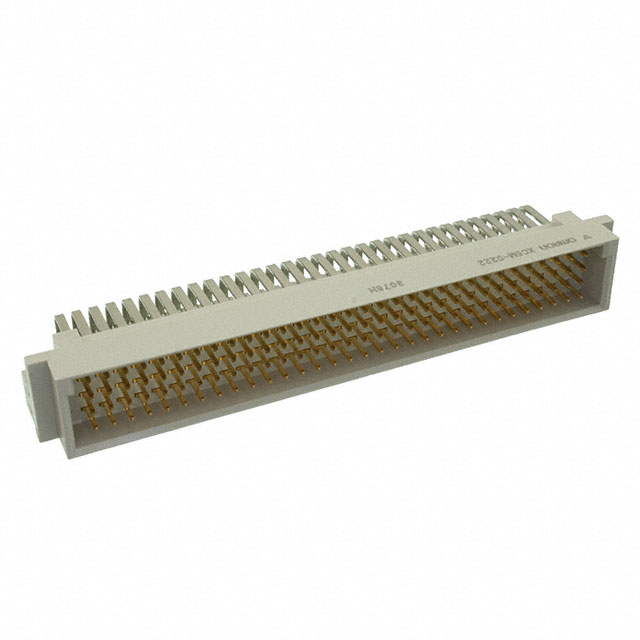

XC5M-0222
ActiveOmron Electronics Inc-EMC Div
CONN DIN PLUG 128POS PCB RA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
XC5M-0222
ActiveOmron Electronics Inc-EMC Div
CONN DIN PLUG 128POS PCB RA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XC5M-0222 |
|---|---|
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Current Rating (Amps) | 2 A |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 128 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.44 | |
| 18 | $ 22.27 | |||
| 27 | $ 21.31 | |||
| 54 | $ 20.63 | |||
| 108 | $ 19.94 | |||
| 252 | $ 18.84 | |||
| 504 | $ 18.29 | |||
Description
General part information
XC5M Series
128 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
