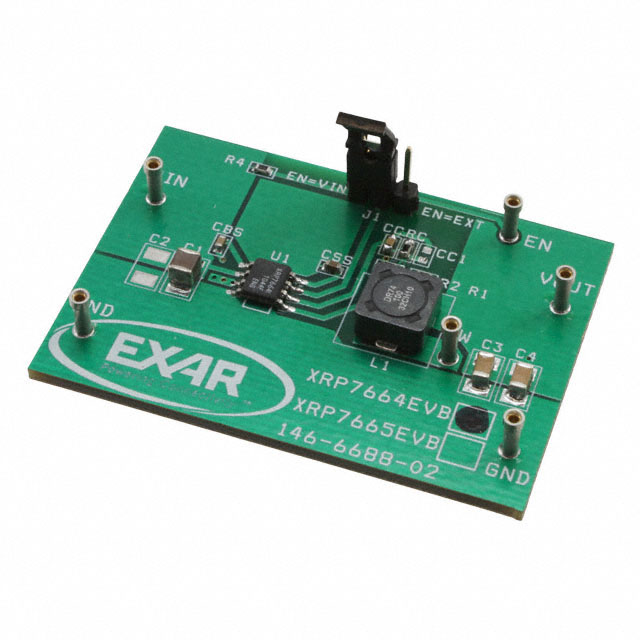

XRP7664EVB

Active

MaxLinear, Inc.

EVAL BOARD FOR XRP7664

Search across all available documentation for this part.

Active

MaxLinear, Inc.

EVAL BOARD FOR XRP7664

Technical Specifications

Parameters and characteristics for this part

Part	Synchronous Rectifier	Mounting Type	Output Configuration	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Current - Output	Package / Case	Package / Case [y]	Package / Case [x]	Function	Supplier Device Package	Voltage - Output (Max)	Voltage - Input (Max) [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Frequency - Switching	Number of Outputs	Outputs and Type	Outputs and Type	Regulator Topology	Main Purpose	Voltage - Output	Board Type	Utilized IC / Part	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]
MaxLinear, Inc. XRP7664IDTR-F		Surface Mount	Positive	4.5 V	0.925 V	2 A	8-SOIC	3.9 mm	0.154 in	Step-Down	8-SOIC	16 V	18 V	Adjustable	85 °C	-40 °C	Buck	340 kHz	1
MaxLinear, Inc. XRP7664EVB						2 A												340 kHz		Non-Isolated	1	Buck	DC/DC Step Down	3.3 V	Fully Populated	XRP7664	Board(s)	4.75 V	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 31.56

General part information

XRP7664 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources

No documents available
