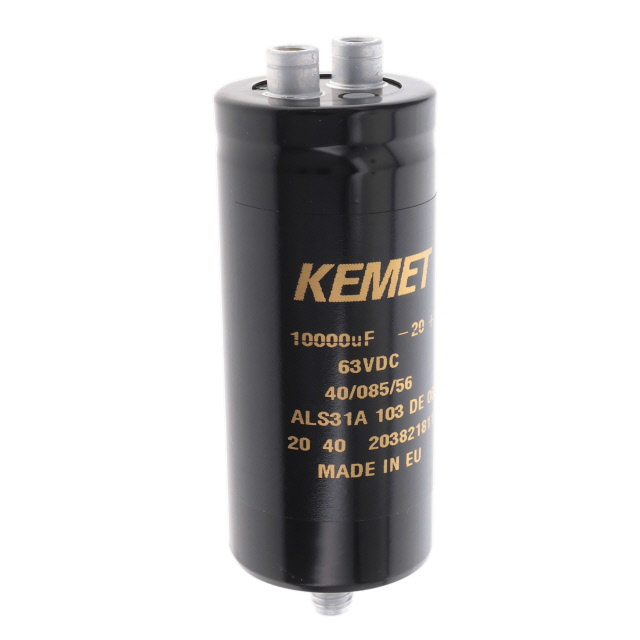

ALS31A103DE063

Active

KEMET

CAP, 10000ΜF, 63V, ALU ELEC, SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ALS31A103DE063 Spec +2

ALS31A103DE063

Active

KEMET

CAP, 10000ΜF, 63V, ALU ELEC, SCREW

Deep-Dive with AI

DocumentsDatasheet ALS31A103DE063 Spec +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALS31A103DE063

Applications	General Purpose
Capacitance	10000 µF
ESR (Equivalent Series Resistance)	17 mOhm
Height - Seated (Max) [Max] [z]	82 mm
Height - Seated (Max) [Max] [z]	3.228 in
Impedance	14 mOhms
Lead Spacing	0.504 in
Lead Spacing	12.8 mm
Lifetime @ Temp.	11000 Hrs
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ Low Frequency	10.8 A
Size / Dimension [diameter]	1.417 in
Size / Dimension [diameter]	36 mm
Tolerance	20 %
Voltage - Rated	63 V

ALS31A Series

Part	Ripple Current @ Low Frequency	Mounting Type	Package / Case	Applications	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Capacitance	Impedance	Voltage - Rated	Tolerance	Lead Spacing	Lead Spacing	Size / Dimension
KEMET ALS31A102KF450	6.5 A	Chassis Stud Mount	Radial Can - Screw Terminals	General Purpose	Polar	85 °C	-40 °C	118 mOhm	51 mm	2.008 "	12.6 A	4.134 "	105 mm	18000 Hrs	1000 µF	79 mOhms	450 V	20 %	0.874 in	22.2 mm
KEMET ALS31A222MF400	11.2 A	Chassis Stud Mount	Radial Can - Screw Terminals	General Purpose	Polar	85 °C	-40 °C	62 mOhm		2.598 in	18.8 A	4.134 "	105 mm	5000 Hrs	2200 µF	44 mOhms	400 V	20 %	1.122 in	28.5 mm	66 mm
KEMET ALS31A682MF200	15.7 A	Chassis Stud Mount	Radial Can - Screw Terminals	General Purpose	Polar	85 °C	-40 °C	27 mOhm		2.598 in	17.7 A	4.134 "	105 mm	5000 Hrs	6800 µF	23 mOhms	200 V	20 %	1.122 in	28.5 mm	66 mm
KEMET ALS31A332NF450	13.8 A	Chassis Stud Mount	Radial Can - Screw Terminals	General Purpose	Polar	85 °C	-40 °C	40 mOhm	77 mm	3.031 "	21.2 A	4.134 "	105 mm	20000 Hrs	3.3 mF	30 mOhms	450 V	20 %	1.252 in	31.8 mm
KEMET ALS31A472NF400	14.6 A	Chassis Stud Mount	Radial Can - Screw Terminals	General Purpose	Polar	85 °C	-40 °C	38 mOhm	77 mm	3.031 "	20.9 A	4.134 "	105 mm	20000 Hrs	4700 µF	26 mOhms	400 V	20 %	1.252 in	31.8 mm
KEMET ALS31A681KE450	4.9 A	Chassis Stud Mount	Radial Can - Screw Terminals	General Purpose	Polar	85 °C	-40 °C	175 mOhm	51 mm	2.008 "	9.9 A	3.228 in	82 mm	18000 Hrs	680 µF	117 mOhms	450 V	20 %	0.874 in	22.2 mm
KEMET ALS31A152DF200	5.6 A	Chassis Stud Mount	Radial Can - Screw Terminals	General Purpose	Polar	85 °C	-40 °C	90 mOhm	36 mm	1.417 in	9.1 A	4.134 "	105 mm	11000 Hrs	1.5 mF	72 mOhms	200 V	20 %	0.504 in	12.8 mm
KEMET ALS31A103DE063	10.8 A	Chassis Stud Mount	Radial Can - Screw Terminals	General Purpose	Polar	85 °C	-40 °C	17 mOhm	36 mm	1.417 in		3.228 in	82 mm	11000 Hrs	10000 µF	14 mOhms	63 V	20 %	0.504 in	12.8 mm
KEMET ALS31A332NP450	16.1 A	Chassis Stud Mount	Radial Can - Screw Terminals	General Purpose	Polar	85 °C	-40 °C	39 mOhm	77 mm	3.031 "	25.1 A	5.748 in	146 mm	20000 Hrs	3.3 mF	27 mOhms	450 V	20 %	1.252 in	31.8 mm
KEMET ALS31A103KE100	10.1 A	Chassis Stud Mount	Radial Can - Screw Terminals	General Purpose	Polar	85 °C	-40 °C	28 mOhm	51 mm	2.008 "	10.5 A	3.307 in	84 mm	18000 Hrs	10000 µF	24 mOhms	100 V	20 %	0.874 in	22.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.63
		10	$ 15.38
		50	$ 13.30
		100	$ 11.97
		500	$ 11.06
Newark	Each	1	$ 20.66
		10	$ 15.42
		25	$ 15.38
		50	$ 13.63
		100	$ 12.17

Description

General part information

ALS31A Series

10000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 17mOhm @ 100Hz 11000 Hrs @ 85°C
