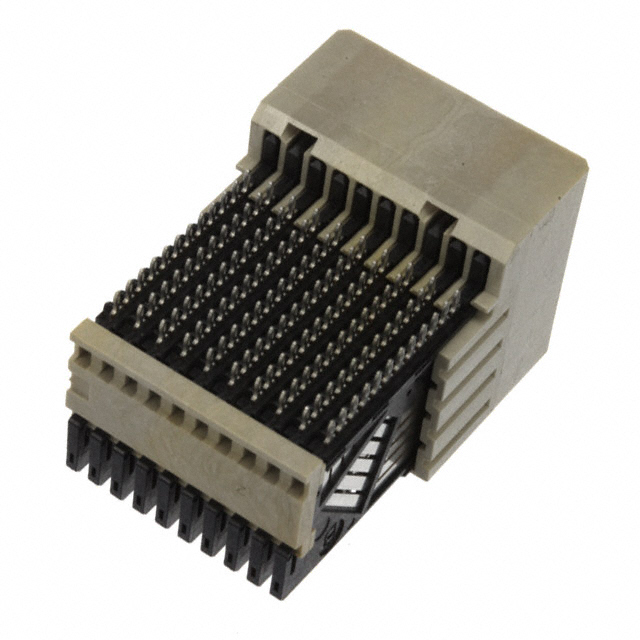

10028436-101LF

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 120POS EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 120POS EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10028436-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	10
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit

Part	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Connector Style	Number of Rows	Number of Columns	Number of Positions Loaded	Material Flammability Rating	Connector Type	Color	Connector Usage	Mounting Type	Pitch [x]	Pitch [x]
Amphenol ICC (FCI) 10028436-101LF	Gold	120	0.76 Ám	30 Áin	85 °C	-55 °C	Press-Fit	High Speed	12	10	All	UL94 V-0	Header Male Pins	Natural	Daughtercard	Board Edge Right Angle Through Hole	0.055 in	1.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

120 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural High Speed
