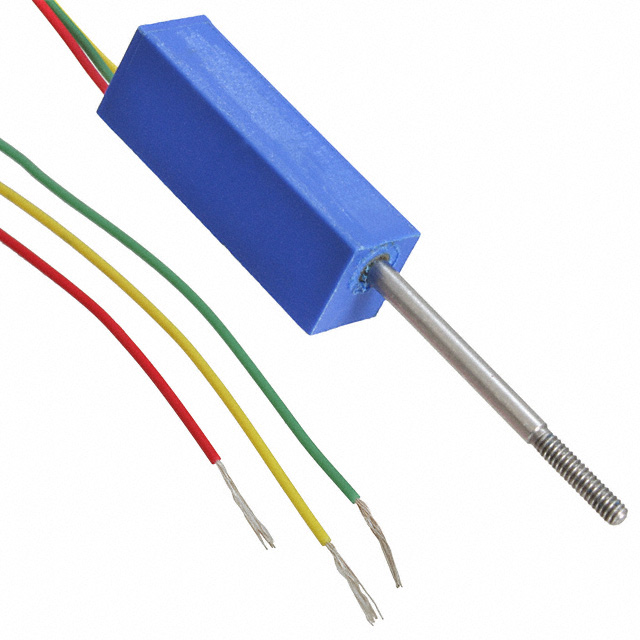

3046L-3-502

Active

Bourns Inc.

LINEAR MOTION POTENTIOMETER, 5 KOHM, ± 20%, 125 MW, 8.89 MM, 3046 SERIES, WIRE LEADED

Search across all available documentation for this part.

Active

Bourns Inc.

LINEAR MOTION POTENTIOMETER, 5 KOHM, ± 20%, 125 MW, 8.89 MM, 3046 SERIES, WIRE LEADED

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Resistance	Output	Technology	Mounting Type	Resistance Tolerance	Actuator Type	Linear Range [Max]	Linear Range [Max]	For Measuring	Package / Case	Linearity
Bourns Inc. 3046L-1-502	-55 °C	125 °C	Wire Leads	5 kOhms	Resistive	Resistive	Chassis Mount	20 %	Round Shaft	0.15 in	3.81 mm	Linear Position	Module Threaded Wire Leads	5 %
Bourns Inc. 3046L-2-102	-55 °C	125 °C	Wire Leads	1000 Ohms	Resistive	Resistive	Chassis Mount	20 %	Round Shaft	0.25 in	6.35 mm	Linear Position	Module Threaded Wire Leads	5 %
Bourns Inc. 3046L-3-103	-55 °C	125 °C	Wire Leads	10000 Ohms	Resistive	Resistive	Chassis Mount	20 %	Round Shaft	0.35 in	8.89 mm	Linear Position	Module Threaded Wire Leads	5 %
Bourns Inc. 3046L-3-502	-55 °C	125 °C	Wire Leads	5 kOhms	Resistive	Resistive	Chassis Mount	20 %	Round Shaft	0.35 in	8.89 mm	Linear Position	Module Threaded Wire Leads	5 %
Bourns Inc. 3046L-3-203	-55 °C	125 °C	Wire Leads	20 kOhms	Resistive	Resistive	Chassis Mount	20 %	Round Shaft	0.35 in	8.89 mm	Linear Position	Module Threaded Wire Leads	5 %
Bourns Inc. 3046L-1-252	-55 °C	125 °C	Wire Leads	2.5 kOhms	Resistive	Resistive	Chassis Mount	20 %	Round Shaft	0.15 in	3.81 mm	Linear Position	Module Threaded Wire Leads	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Resistive Sensor Linear Position Round Shaft Wire Leads
