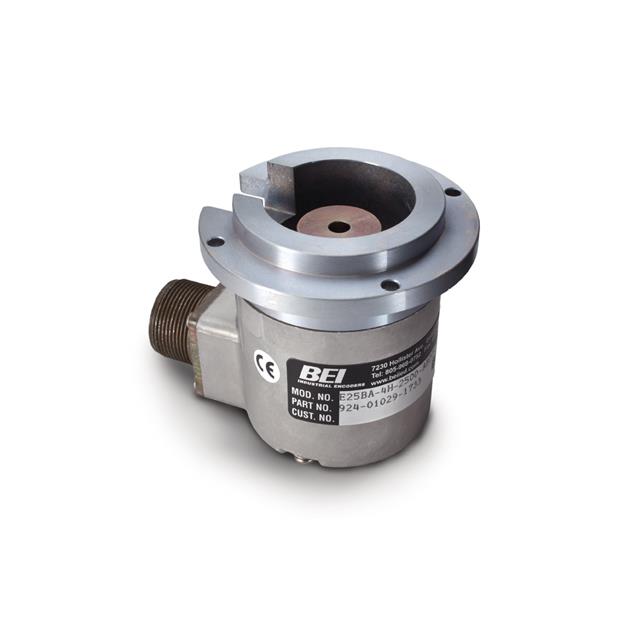

01029-1267

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 2048PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 2048PPR

Technical Specifications

Parameters and characteristics for this part

Specification	01029-1267

Actuator Type	Hole for Shaft
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Chassis Mount
Orientation	User Selectable
Output Type	Quadrature (Incremental)
Pulses per Revolution	2048
Rotational Life (Cycles Min) [Min]	1B
Termination Style	Cable
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	5 V

Part	Detent	Termination Style	Pulses per Revolution	Orientation	Output Type	Actuator Type	Built in Switch	Rotational Life (Cycles Min) [Min]	Encoder Type	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Sensata-BEI Sensors 01029-279		Cable	50	User Selectable	Quadrature with Index (Incremental)	Hole for Shaft		1B	Optical	Chassis Mount	5 V	28 V
Sensata-BEI Sensors 01029-1267		Cable	2048	User Selectable	Quadrature (Incremental)	Hole for Shaft		1B	Optical	Chassis Mount	5 V	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 761.09

General part information

ROTARY ENCODER OPTICAL 2048PPR
