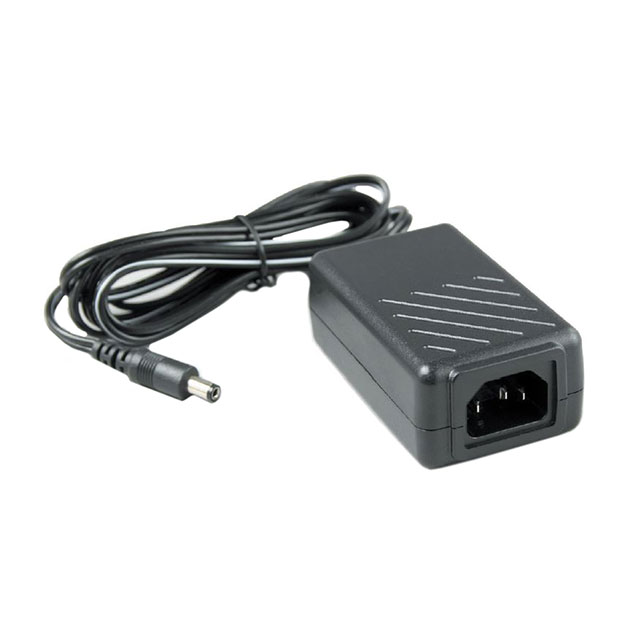

IPD5019-760S
ActiveInventus Power
AC/DC DESKTOP ADAPTER 19V 49W
Deep-Dive with AI
Search across all available documentation for this part.
IPD5019-760S
ActiveInventus Power
AC/DC DESKTOP ADAPTER 19V 49W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPD5019-760S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cTUVus, CE |
| Cord Length | 1.22 m |
| Cord Length | 48 in |
| Current - Output (Max) [Max] | 2.6 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 49 W |
| Region Utilized | North America |
| Size / Dimension [x] | 114.2 mm |
| Size / Dimension [x] | 4.5 in |
| Size / Dimension [y] | 2.26 in |
| Size / Dimension [y] | 57.5 mm |
| Size / Dimension [z] | 36.5 mm |
| Size / Dimension [z] | 1.44 " |
| Voltage - Output | 19 V |
| Weight | 200.03 g |
| Weight | 0.441 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24.55 | |
| 5 | $ 24.18 | |||
| 20 | $ 23.80 | |||
| 40 | $ 22.66 | |||
| 60 | $ 21.91 | |||
| 100 | $ 20.40 | |||
Description
General part information
IPD5019 Series
19V 49 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
