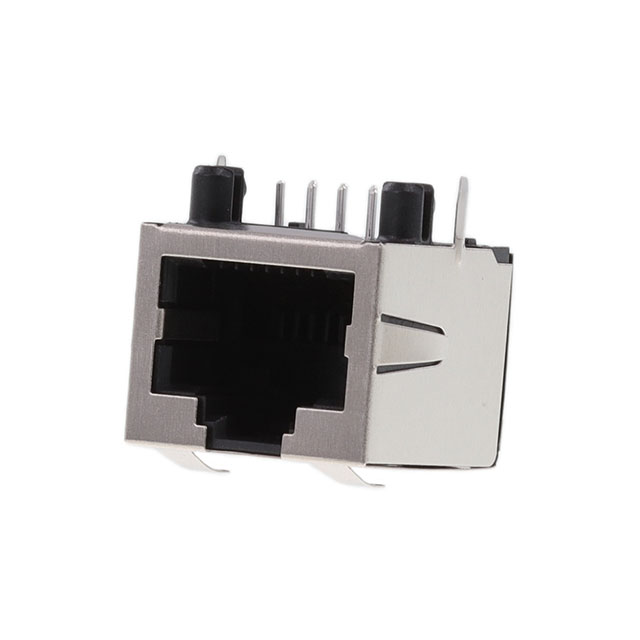

RJHSE5180

Active

Amphenol ICC (Commercial Products)

8P8C, RA, SHIELD WITH TOP AND SI

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

8P8C, RA, SHIELD WITH TOP AND SI

Technical Specifications

Parameters and characteristics for this part

Specification	RJHSE5180

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Contact Finish	Connector Type	Mounting Type	Number of Positions/Contacts	Orientation	Number of Ports	Termination	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Tab Direction	Housing Material	Shielding
Amphenol ICC (Commercial Products) RJHSE5180	85 °C	-55 °C	Does Not Contain LED	Gold	Jack	Panel Mount Through Hole	8p8c (RJ45 Ethernet)	90 °	1	Solder	Phosphor Bronze	0.76 Ám	30 Áin	1	Up	Thermoplastic	Shielded EMI Finger

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
