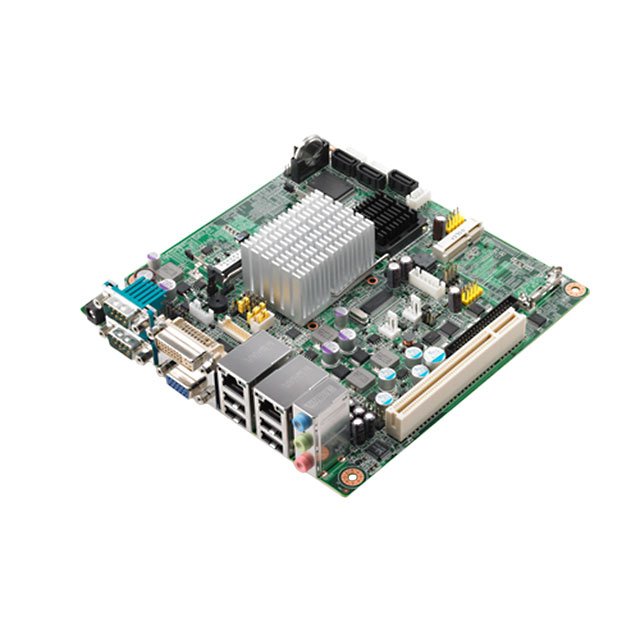

AIMB-213D-S6A1E

Active

Advantech Corp

SBC 1.8GHZ 2 CORE 2GB/0GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 1.8GHZ 2 CORE 2GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Part	Cooling Type	Digital I/O Lines	RS-232 (422, 485)	Storage Interface	Core Processor	Speed	Watchdog Timer	Number of Cores	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	RAM Capacity/Installed	Video Outputs	Ethernet	Form Factor	USB
Advantech Corp AIMB-213D-S6A1E	Fan	8	4	CompactFlash SATA 2.0 (3)	Intel Atom D525	1.8 GHz		2	169.92 mm	6.69 "	6.69 in	169.92 mm	60 °C	0 °C	0 GB 2 GB	CRT DVI LVDS VGA	10 Mbps 100 Mbps 1000 Mbps	mini-ITX	USB 2.0
Advantech Corp AIMB-213N-S6A1E	Heat Sink	8	4	CompactFlash SATA 2.0 (3)	Intel Atom N455	1.6 GHz		1	169.92 mm	6.69 "	6.69 in	169.92 mm	60 °C	0 °C	0 GB 4 GB	CRT DVI LVDS VGA	10 Mbps 100 Mbps 1000 Mbps	mini-ITX	USB 2.0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 308.38

General part information

Single Board Computer 1.8GHz 2 Core 2GB/0GB RAM Intel Atom D525
