A-DF 25 PP/Z

Active

Assmann WSW Components

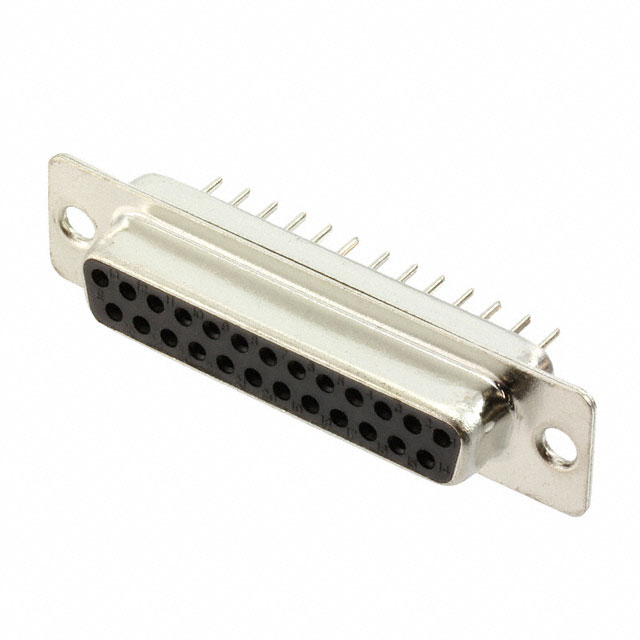

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A-DF 25 PP/Z

Active

Assmann WSW Components

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-DF 25 PP/Z

Color	Gray
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	250 VDC

A-DF 25 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Voltage Rating	Mounting Type	Number of Rows	Contact Finish Thickness	Connector Style	Contact Type	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Contact Material	Dielectric Material	Material Flammability Rating	Current Rating (Amps)	Color	Contact Finish	Termination	Features	Backset Spacing	Backset Spacing	Wire Gauge [Min]	Wire Gauge [Max]	Ingress Protection
Assmann WSW Components A-DF 25 LL/Z	105 ░C	-55 °C	Steel	250 VDC	Free Hanging (In-Line)	2	Flash	D-Sub	Signal	Housing/Shell (Unthreaded)	B DB	3	Receptacle Female Sockets	Brass	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	3 A	White	Gold
Assmann WSW Components A-DF 25 PP/Z-BK	105 ░C	-55 °C		250 VAC	Through Hole	2	Flash	D-Sub	Signal	Housing/Shell (Unthreaded)	B DB	3	Receptacle Female Sockets	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	3 A	Black	Gold	Solder
Assmann WSW Components A-DF 25 PP/Z	105 ░C	-20 C		250 VDC	Through Hole	2	Flash	D-Sub	Signal	Housing/Shell (Unthreaded)	B DB	3	Receptacle Female Sockets	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	3 A	Gray	Gold	Solder
Assmann WSW Components A-DF 25 PP-F	85 °C	-20 C	Steel	250 VDC	Through Hole	2	Flash	D-Sub	Signal	Housing/Shell (Unthreaded)	B DB	3	Receptacle Female Sockets	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	3 A	Black	Gold	Solder	Filter
Assmann WSW Components A-DF 25 A/KG-T4S	105 ░C	-55 °C		250 VDC	Through Hole Right Angle	2	Flash	D-Sub	Signal	Housing/Shell (4-40)	B DB	3	Receptacle Female Sockets	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	3 A	Black	Gold	Solder		0.319 in	8.1 mm
Assmann WSW Components A-DF 25 LL-WP	105 ░C	-40 °C				2		D-Sub	Signal	Female Screwlock Mating Side	B DB	3	Receptacle Female Sockets	Copper Alloy	Glass Filled Nylon Polyamide (PA)		5 A	Black	Gold					22 AWG	26 AWG	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.17
		10	$ 0.99
		25	$ 0.95
		50	$ 0.93
		100	$ 0.89
		250	$ 0.81
		450	$ 0.73
		950	$ 0.65
		2400	$ 0.59

Description

General part information

A-DF 25 Series

25 Position D-Sub Receptacle, Female Sockets Connector
