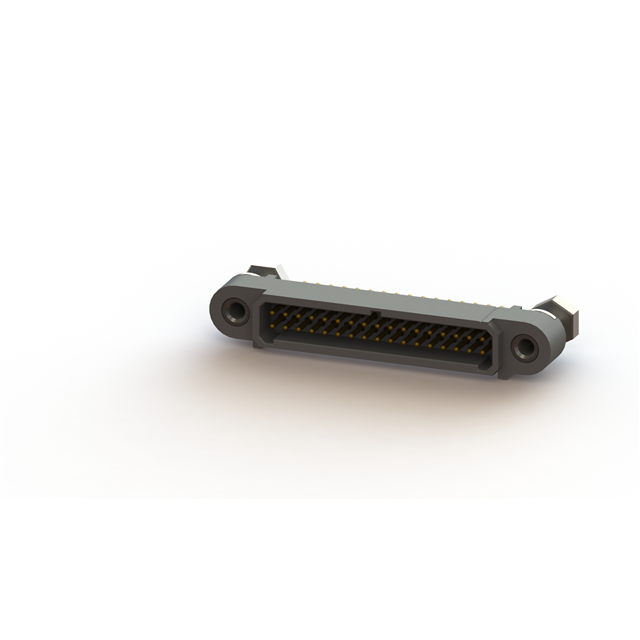

A221Y34V22

Active

Nicomatic

MALE 34POS STRAIGHT TRGH 1.27MM

Search across all available documentation for this part.

Active

Nicomatic

MALE 34POS STRAIGHT TRGH 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	A221Y34V22

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	0.15 µm
Contact Finish Thickness - Post	5.9 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Features	Mounting Flange, Mating Flange, Mounting Hardware
Insulation Color	Black
Insulation Height	0.161 in
Insulation Height	4.1 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 VAC

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Number of Positions Loaded	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Color	Voltage Rating	Termination	Contact Material	Contact Type	Style	Material Flammability Rating	Insulation Height	Insulation Height	Features	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Insulation Material	Number of Rows	Current Rating (Amps)	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type
Nicomatic A221Y34V22	Header	-65 ░C	200 °C	Shrouded - 4 Wall	0.15 µm	5.9 µin	34	All	Through Hole	0.039 in	1 mm	Gold	Black	600 VAC	Solder	Copper Alloy	Male Pin	Board to Board Cable	UL94 V-0	0.161 in	4.1 mm	Mating Flange Mounting Flange Mounting Hardware	0.039 "	1 mm	Gold	Liquid Crystal Polymer (LCP)	2	2.5 A	Circular	0.15 µm	5.9 µin
Nicomatic A221Y34VXX	Header	-65 ░C	200 °C	Shrouded - 4 Wall	0.15 µm	5.9 µin	34	All	Through Hole	0.039 in	1 mm	Gold	Black	600 VAC	Solder	Copper Alloy	Male Pin	Board to Board Cable	UL94 V-0	0.161 in	4.1 mm	Mating Flange	0.039 "	1 mm	Gold	Liquid Crystal Polymer (LCP)	2	2.5 A	Circular	0.15 µm	5.9 µin	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 34 position 0.039" (1.00mm)
