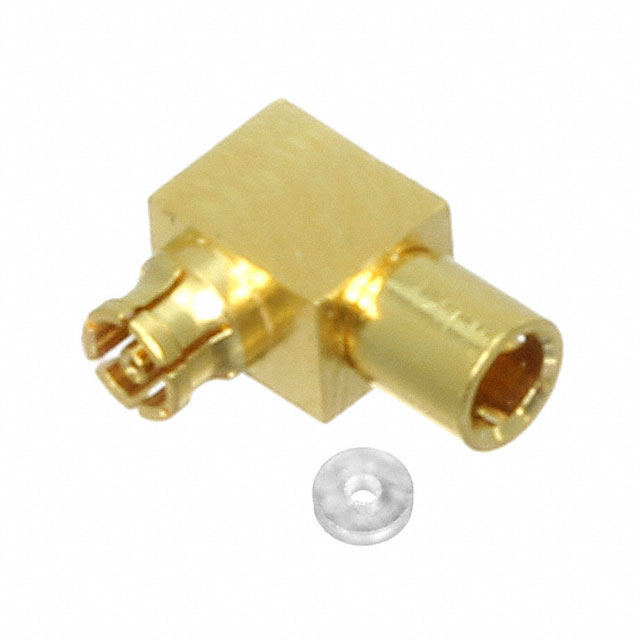

W1K201-270D3

Active

Rosenberger

CONN WSMP JACK R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN WSMP JACK R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	W1K201-270D3

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	Semi Rigid
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	WSMP
Connector Type	Female Socket, Jack
Contact Termination	Solder
Fastening Type	Snap-On
Frequency - Max [Max]	100 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Frequency - Max [Max]	Connector Style	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Center Contact Plating	Cable Group	Cable Group	Shield Termination	Body Finish	Contact Termination	Mounting Type	Housing Color	Connector Type	Body Material	Number of Ports	Fastening Type
Rosenberger W1K201-270D3	100 GHz	WSMP	50 Ohms	165 °C	-55 °C	Beryllium Copper	Gold	Semi Rigid	0.047 in	Solder	Gold	Solder	Free Hanging (In-Line) Right Angle	Gold	Female Socket Jack	Beryllium Copper	1	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

WSMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources

No documents available
