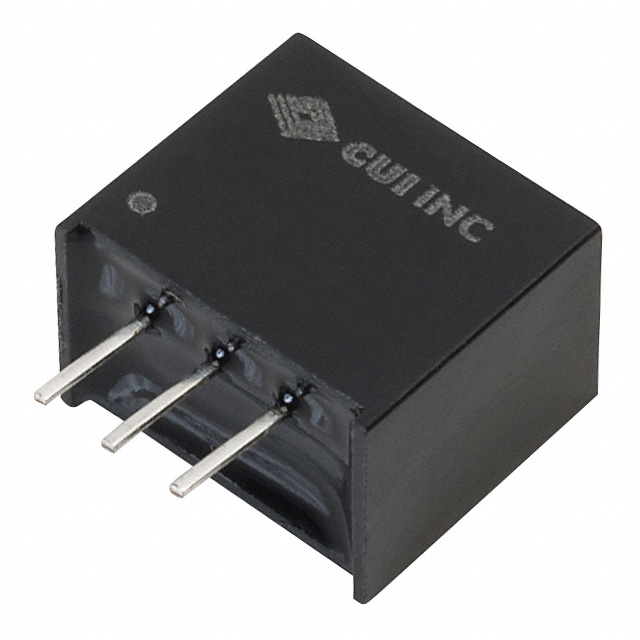

P7805-Q24-S9-S

Obsolete

CUI Inc.

DC DC CONVERTER 9V 5W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 9V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	P7805-Q24-S9-S

Applications	ITE (Commercial)
Approval Agency	EN
Current - Output (Max) [Max]	500 mA
Efficiency	95 %
Features	OTP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	5 W
Size / Dimension [x]	11.6 mm
Size / Dimension [x]	0.46 in
Size / Dimension [y]	7.5 mm
Size / Dimension [y]	0.3 "
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Standard Number	55024, 55032
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	32 V
Voltage - Input (Min) [Min]	11 V
Voltage - Output 1	9 V

Part	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Standard Number	Applications	Features	Voltage - Output 1	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Type	Approval Agency	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number
CUI Inc. P7805-Q24-S3-S	500 mA	4.75 V	3-SIP Module	Through Hole	55024	ITE (Commercial)	OTP SCP	3.3 V	2 W	11.6 mm	0.46 in	10.2 mm	0.4 "	7.5 mm	0.3 "	1	Linear Regulator Replacement	EN	91 %	28 V	85 °C	-40 °C
CUI Inc. P7805-Q24-S9-S	500 mA	11 V	3-SIP Module	Through Hole		ITE (Commercial)	OTP SCP	9 V	5 W	11.6 mm	0.46 in	10.2 mm	0.4 "	7.5 mm	0.3 "	1	Linear Regulator Replacement	EN	95 %	32 V	85 °C	-40 °C	55024 55032

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Regulator Replacement DC DC Converter 1 Output 9V 500mA 11V - 32V Input
