892-110-555-212
ActiveEDAC Inc.
CONN EDGE DUAL FML 110POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-110-555-212
ActiveEDAC Inc.
CONN EDGE DUAL FML 110POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-110-555-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 110 positions |
| Number of Positions/Bay/Row [custom] | 55 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
892-110 Series
...
| Part | Pitch [x] | Pitch [x] | Color | Mounting Type | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Contact Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Number of Rows | Gender | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | Black | Through Hole | 2 | 55 | 110 positions | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Dual Edge | Cantilever | Gold | 125 °C | -40 °C | Wire Wrap | 2 | Female | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | |
EDAC Inc. | 2.54 mm | 0.1 in | Black | Through Hole | 2 | 55 | 110 positions | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Dual Edge | Cantilever | Gold | 125 °C | -40 °C | Solder | 2 | Female | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | |
EDAC Inc. | 2.54 mm | 0.1 in | Black | Board Edge Straddle Mount | 2 | 55 | 110 positions | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | Cantilever | Gold | 125 °C | -40 °C | Solder | 2 | Female | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | Card Extender |
EDAC Inc. | 2.54 mm | 0.1 in | Black | Through Hole | 2 | 55 | 110 positions | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Cantilever | Gold | 125 °C | -40 °C | Solder | 2 | Female | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | |||
EDAC Inc. | 2.54 mm | 0.1 in | Black | Through Hole | 2 | 55 | 110 positions | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Cantilever | Gold | 125 °C | -40 °C | Wire Wrap | 2 | Female | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | |||
EDAC Inc. | 2.54 mm | 0.1 in | Black | Board Edge Straddle Mount | 2 | 55 | 110 positions | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Cantilever | Gold | 125 °C | -40 °C | Solder | 2 | Female | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | Card Extender | ||
EDAC Inc. | 2.54 mm | 0.1 in | Black | Through Hole Right Angle | 2 | 55 | 110 positions | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Cantilever | Gold | 125 °C | -40 °C | Solder | 2 | Female | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | |||
EDAC Inc. | 2.54 mm | 0.1 in | Black | Through Hole Right Angle | 2 | 55 | 110 positions | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Cantilever | Gold | 125 °C | -40 °C | Solder | 2 | Female | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | |||
EDAC Inc. | 2.54 mm | 0.1 in | Black | Through Hole | 2 | 55 | 110 positions | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | Cantilever | Gold | 125 °C | -40 °C | Solder | 2 | Female | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | |
EDAC Inc. | 2.54 mm | 0.1 in | Black | Through Hole Right Angle | 2 | 55 | 110 positions | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Cantilever | Gold | 125 °C | -40 °C | Solder | 2 | Female | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-110 Series

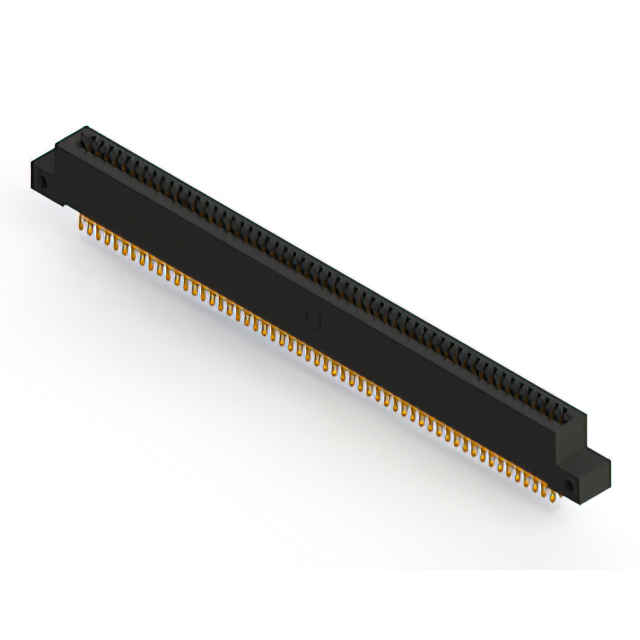

110 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
