10-2513.1146

Active

EAO

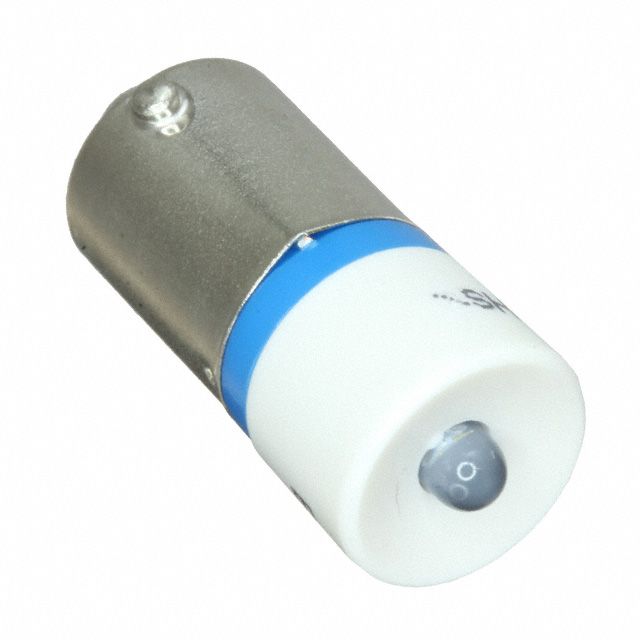

SINGLE CHIP LED/ T-3 1/4/(BA9S) 28 VAC-DC/ BLUE

Search across all available documentation for this part.

Active

EAO

SINGLE CHIP LED/ T-3 1/4/(BA9S) 28 VAC-DC/ BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	10-2513.1146

Applications	General Purpose Lighting
Base Type	Miniature Bayonet (BA9S)
Can Replace Lamps	Multiple Miniature Bayonet Lamps
Color	Blue
Configuration	Single
Millicandela Rating	590 mcd
Size / Dimension [diameter]	0.394 in
Size / Dimension [diameter]	10 mm
Size / Dimension [x]	1.142 inches
Size / Dimension [x]	29 mm
Voltage - Forward (Vf) (Typ)	28 V
Wavelength	470 nm

Part	(Select First, Then Apply Filters) Compatible Series	(Select First, Then Apply Filters) Compatible Series	Color	Type	Voltage	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Applications	Configuration	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Can Replace Lamps	Base Type	Wavelength
EAO 10-2513.1145	10	EAO	Green	LED	28 V
EAO 10-2513.1146			Blue			0.394 in	1.142 inches	10 mm	29 mm	General Purpose Lighting	Single	28 V	590 mcd	Multiple Miniature Bayonet Lamps	Miniature Bayonet (BA9S)	470 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lamp Replacement Blue Miniature Bayonet (BA9S) 28V AC/DC 0.394" Dia x 1.142" L (10.00mm x 29.00mm)
