C3AAS-5036G

Active

CW Industries

IDC CABLE - CSC50S/AE50G/CSC50S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSC50S/AE50G/CSC50S

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Contact Finish	Cable Termination	Length [x]	Length [x]	Shielding	Connector Type	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Color	Length	Length	Length
CW Industries C3AAS-5018G	50	Tin	IDC	457.2 mm	1.5 ft	Unshielded	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	2	2.54 µm	100 µin
CW Industries C3AAS-5006M	50	Tin	IDC			Unshielded	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	2	2.54 µm	100 µin	Multiple Ribbon	152.4 mm	6 "	0.5 '
CW Industries C3AAS-5036G	50	Tin	IDC	914.4 mm	3 ft	Unshielded	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	2	2.54 µm	100 µin
CW Industries C3AAS-5036M	50	Tin	IDC	914.4 mm	3 ft	Unshielded	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	2	2.54 µm	100 µin	Multiple Ribbon
CW Industries C3AAS-5018M	50	Tin	IDC	457.2 mm	1.5 ft	Unshielded	Socket to Socket	0.1 in	2.54 mm	0.05 "	1.27 mm	2	2.54 µm	100 µin	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

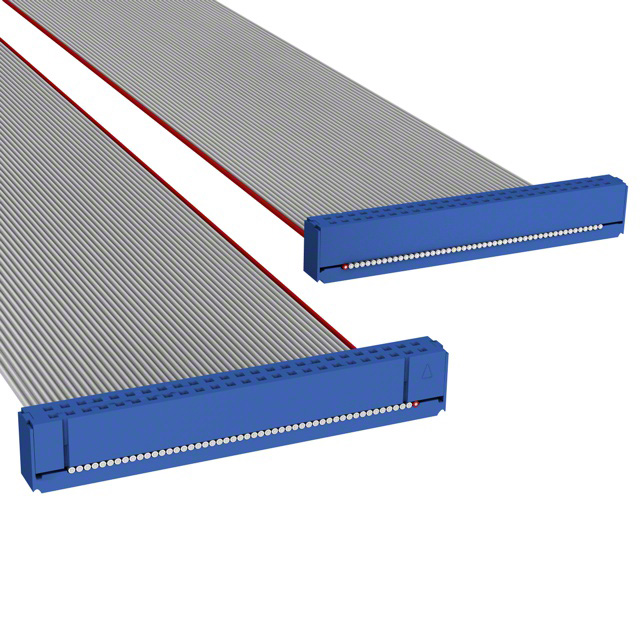

50 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
