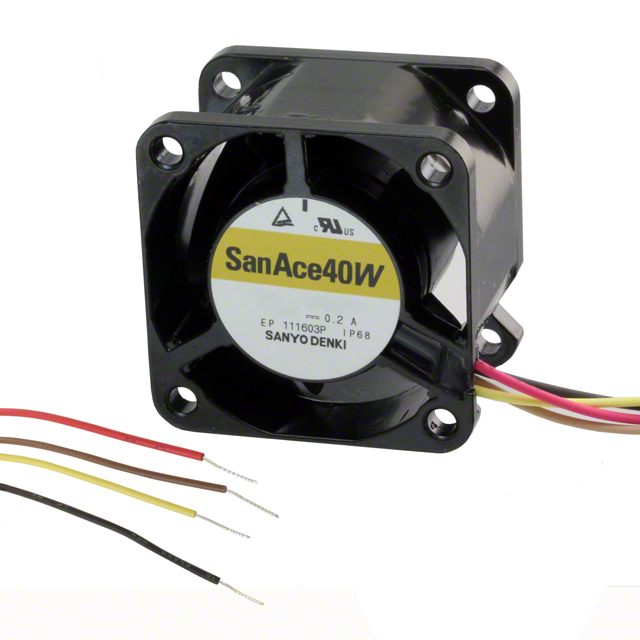

9WL0424P3J001
ActiveSanyo Denki America Inc.
FAN AXIAL 40X28MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9WL0424P3J001
ActiveSanyo Denki America Inc.
FAN AXIAL 40X28MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9WL0424P3J001 |
|---|---|
| Air Flow | 22.2 CFM |
| Air Flow | 0.622 m³/min |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.26 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), PWM Control |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lifetime @ Temp. | 150000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 51 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 6.24 W |
| RPM | 17500 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 1.61 in H2O |
| Static Pressure | 401 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 21.6 VDC |
| Weight | 0.154 lb |
| Weight | 69.85 g |
| Width [y] | 28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 73.37 | |
| 10 | $ 66.38 | |||
| 25 | $ 62.01 | |||
| 50 | $ 61.14 | |||
| 126 | $ 56.34 | |||
Description
General part information
9WL0424 Series
Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 22.2 CFM (0.622m³/min) 4 Wire Leads
