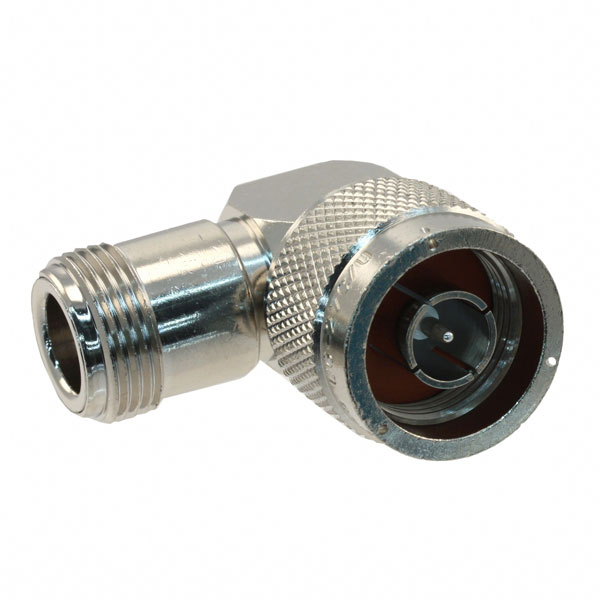

082-213

Active

Amphenol RF

CONN ADAPT JACK TO PLUG N 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT JACK TO PLUG N 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	082-213

Adapter Series	N to N
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Right Angle

Part	Body Finish	Convert To (Adapter End)	Impedance	Mounting Type	Body Material	Frequency - Max [Max]	Mating Cycles	Adapter Series	Adapter Type	Conversion Type	Convert From (Adapter End)	Style	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Dielectric Material	Center Contact Material
Amphenol RF 082-213	Nickel	Male Pin N Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	11 GHz	500	N to N	Plug to Jack	Same Series	Female Socket N Jack	Right Angle	-65 ░C	165 °C	Silver	Polytetrafluoroethylene (PTFE)	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Plug, Male Pin 50 Ohms
