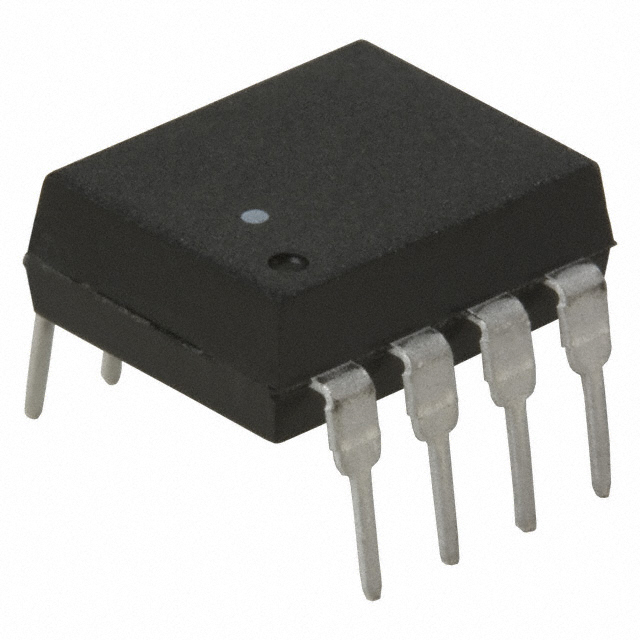

ACNW3430-500E

Active

Broadcom Limited

OPTOISO 5KV 1CH GATE DVR 8SMD GW

Search across all available documentation for this part.

Active

Broadcom Limited

OPTOISO 5KV 1CH GATE DVR 8SMD GW

Technical Specifications

Parameters and characteristics for this part

Specification	ACNW3430-500E

Approval Agency	UR, CSA, IEC/EN/DIN
Common Mode Transient Immunity (Min) [Min]	100 V/ns
Current - DC Forward (If) (Max) [Max]	25 mA
Current - Output High, Low [custom]	4 A
Current - Output High, Low [custom]	4 A
Current - Peak Output	5 A
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Propagation Delay tpLH / tpHL (Max) [custom]	150 ns
Propagation Delay tpLH / tpHL (Max) [custom]	150 ns
Pulse Width Distortion (Max) [Max]	80 ns
Rise / Fall Time (Typ) [custom]	20 ns
Rise / Fall Time (Typ) [custom]	10 ns
Supplier Device Package	8-SMD Gull Wing
Technology	Optical Coupling
Voltage - Forward (Vf) (Typ)	1.45 V
Voltage - Output Supply [Max]	30 V
Voltage - Output Supply [Min]	15 V

Part	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Forward (Vf) (Typ)	Common Mode Transient Immunity (Min) [Min]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Approval Agency	Technology	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Channels	Current - Peak Output	Current - DC Forward (If) (Max) [Max]	Pulse Width Distortion (Max) [Max]	Package / Case	Package / Case	Package / Case
Broadcom Limited ACNW3430-500E	15 V	30 V	150 ns	150 ns	1.45 V	100 V/ns	8-SMD Gull Wing	-40 °C	105 ░C	Surface Mount	20 ns	10 ns	CSA IEC/EN/DIN UR	Optical Coupling	4 A	4 A	1	5 A	25 mA	80 ns
Broadcom Limited ACNW3430-000E	15 V	30 V	150 ns	150 ns	1.45 V	100 V/ns	8-DIP	-40 °C	105 ░C	Through Hole	20 ns	10 ns	CSA IEC/EN/DIN UR	Optical Coupling	4 A	4 A	1	5 A	25 mA	80 ns	10.16 mm	8-DIP	10.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-SMD Gull Wing
