A15038-112

Active

Laird Technologies - Thermal Materials

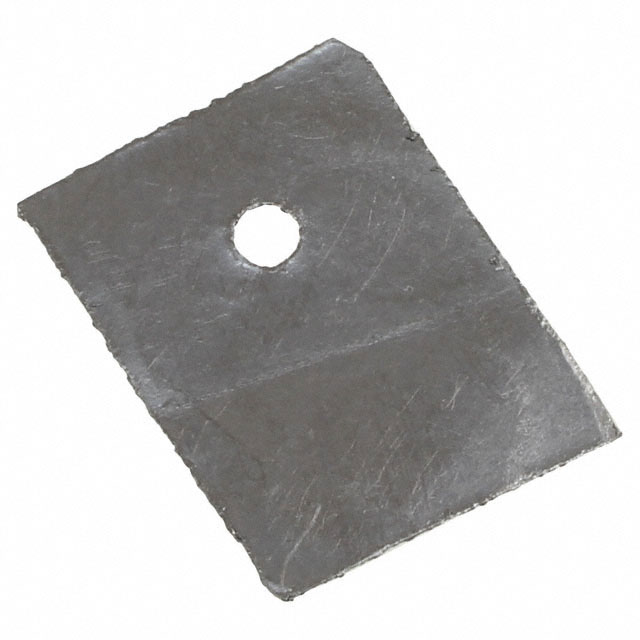

THERM PAD 25.4MMX19.05MM GRAY

Search across all available documentation for this part.

Active

Laird Technologies - Thermal Materials

THERM PAD 25.4MMX19.05MM GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Usage	Outline [y]	Outline [x]	Material	Shape	Type	Adhesive	Thickness	Thickness	Thermal Resistivity	Color	Thickness [x]	Thickness [x]	Thermal Conductivity	Backing, Carrier	Thickness [custom]	Thickness [custom]
Laird Technologies - Thermal Materials A15038-107	TO-220	19.05 mm	25.4 mm	Phase Change Compound	Rectangular	Sheet	Adhesive - One Side	0.076 mm	0.003 in	3.4 °C/W	White
Laird Technologies - Thermal Materials A15038-112	TO-220	19.05 mm	25.4 mm	Graphite	Rectangular	Graphite-Pad Sheet				0.07 °C/W	Gray	0.005 in	0.127 mm	5 W/m-K
Laird Technologies - Thermal Materials A15038-004	TO-247	19.05 mm	25.4 mm		Rectangular	Die-Cut Pad Sheet					White			5 W/m-K	Fiberglass	0.254 mm	0.01 in
Laird Technologies - Thermal Materials A15038-003	TO-220	19.05 mm	25.4 mm	Polyimide Silicone Rubber Coated	Rectangular	Die-Cut Pad Sheet		0.152 mm	0.006 in		Tan

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Thermal Pad Gray 25.40mm x 19.05mm Rectangular
