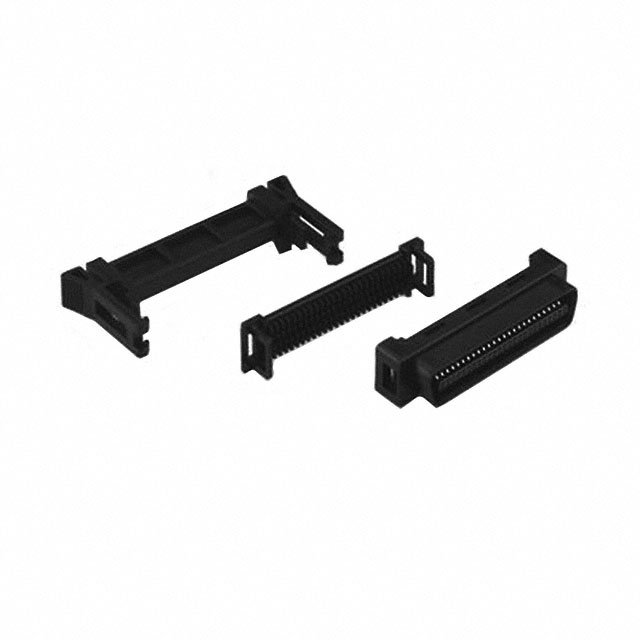

10168-8100EE

Active

3M (TC)

CONNECTOR,D-SHELL,CABLE MOUNT,RECEPT,68 CONTACTS,PIN,0.05 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

3M (TC)

CONNECTOR,D-SHELL,CABLE MOUNT,RECEPT,68 CONTACTS,PIN,0.05 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Number of Rows	Termination	Features	Contact Finish	Connector Type	Connector Style
3M (TC) 10168-900APL	8 çin	0.203 çm	Board Edge Straddle Mount	68	2	Solder	Shielded	Gold	Plug	Center Strip Contacts
3M (TC) 10168-8100EE	30 Áin	0.76 Ám	Free Hanging (In-Line)	68	2	IDC		Gold	Plug	Center Strip Contacts
3M (TC) 10168-6010EC	30 Áin	0.76 Ám	Free Hanging (In-Line)	68	2	IDC	Shielded	Gold	Plug	Center Strip Contacts
3M (TC) 10168-900AJL	8 çin	0.203 çm	Board Edge Straddle Mount	68	2	Solder	Shielded	Gold	Plug	Center Strip Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 Position Plug Connector Free Hanging (In-Line) IDC
