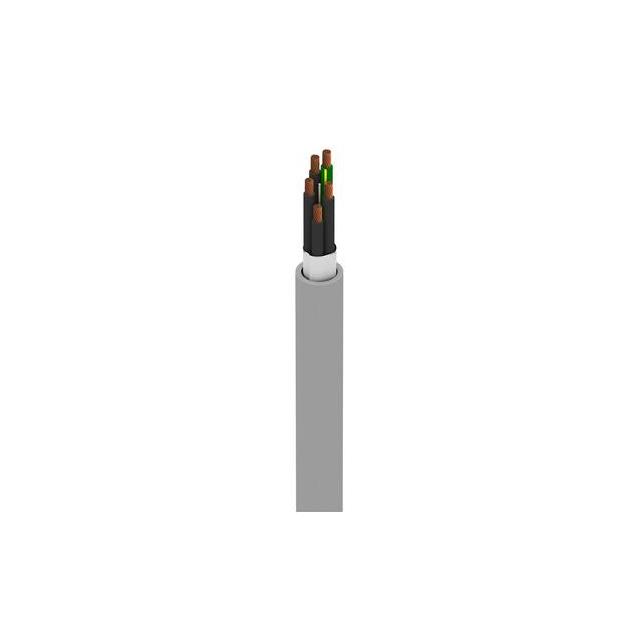

7403W 0601000

Active

Belden Inc.

CABLE 5COND 20AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 5COND 20AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	7403W 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	10
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.257 in
Jacket (Insulation) Diameter [diameter]	6.53 mm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	5
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 20327
Voltage	300 V
Wire Gauge	20 AWG

Part	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Features	Voltage	Conductor Insulation	Wire Gauge	Jacket (Insulation) Material	Conductor Material	Ratings
Belden Inc. 7403W 0601000	1000 ft	304.8 m	90 °C	-40 °C	30 AWG	10	Chrome	Multi-Conductor	0.257 in	6.53 mm	0.94 mm	0.037 in	5	Oil Resistant UV Resistant	300 V	Poly-Vinyl Chloride (PVC)	20 AWG	Thermoplastic Elastomer (TPE)	Copper Bare	UL Style 20327

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.18

General part information

5 Conductor Multi-Conductor Cable Chrome 20 AWG 1000.0' (304.8m)
