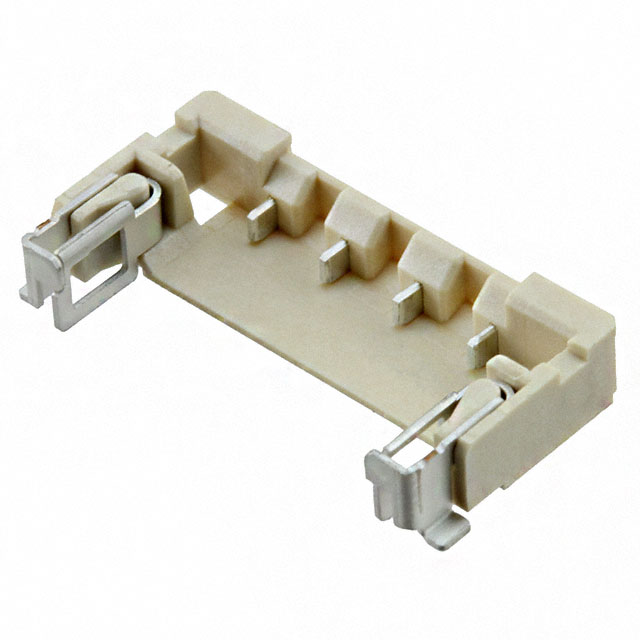

ES9P004VFZR1600
ActiveJAE Electronics
CONN HEADER SMD R/A 4POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ES9P004VFZR1600
ActiveJAE Electronics
CONN HEADER SMD R/A 4POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ES9P004VFZR1600 |
|---|---|
| Connector Type | Plug |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Current Rating (Amps) | 3 A |
| Fastening Type | Spring Lock |
| Features | Solder Retention |
| Insulation Color | Ivory |
| Insulation Height | 0.118 in |
| Insulation Height | 3 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Shrouding | Shrouded - 3 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.69 | |
| 10 | $ 0.60 | |||
| 100 | $ 0.49 | |||
| 500 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 0.69 | ||
| 10 | $ 0.60 | |||
| 100 | $ 0.49 | |||
| 500 | $ 0.43 | |||
| Tape & Reel (TR) | 1600 | $ 0.34 | ||
| 3200 | $ 0.32 | |||
| 4800 | $ 0.31 | |||
| 8000 | $ 0.29 | |||
| 16000 | $ 0.29 | |||
Description
General part information
ES9P004V Series
Connector Header Surface Mount, Right Angle 4 position 0.118" (3.00mm)
