4-1393817-1

Obsolete

TE Connectivity Potter & Brumfield Relays

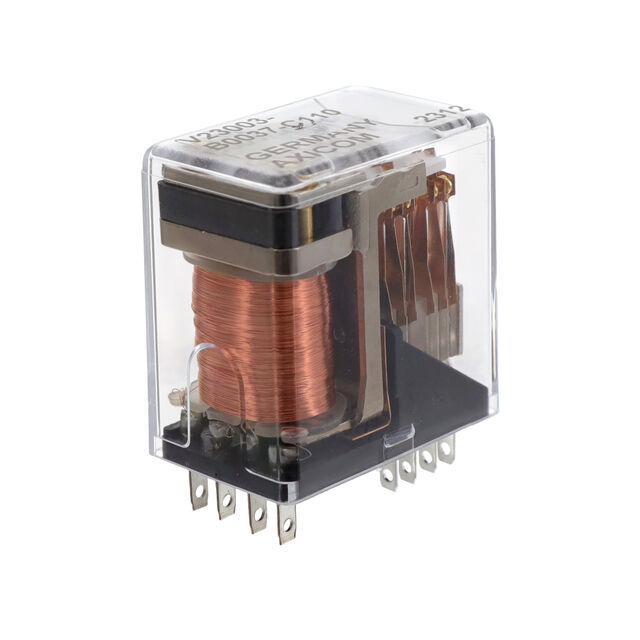

RELAY GEN PURPOSE 4PDT 2A 24V

Deep-Dive with AI

Search across all available documentation for this part.

4-1393817-1

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 4PDT 2A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4-1393817-1

Coil Current	60 mA
Coil Resistance	400 Ohms
Coil Type	Latching, Dual Coil
Coil Voltage	24 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	300 W, 250 VA
Mounting Type	Socketable
Must Operate Voltage	16.5 VDC
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Switching Voltage	150 VDC, 125 VAC
Termination Style	Plug In

1393817 Series

Part	Coil Type	Relay Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Coil Voltage	Contact Form	Must Operate Voltage	Coil Resistance	Coil Current	Switching Voltage	Termination Style	Mounting Type	Load - Max Switching	Load - Max Switching
TE Connectivity Potter & Brumfield Relays 6-1393817-5	Latching Dual Coil	General Purpose	Silver (Ag)	-40 °C	70 °C	5 A	48 VDC	DPDT (2 Form C)	33.5 VDC	1.4 kOhms	34.3 mA	250 VAC 250 VDC	Plug In	Socketable
TE Connectivity Potter & Brumfield Relays 5-1393817-7	Latching Dual Coil	General Purpose	Silver (Ag)	-40 °C	70 °C	5 A	60 VDC	DPDT (2 Form C)	44 VDC	2.4 kOhms		250 VAC 250 VDC	Plug In	Socketable
TE Connectivity Potter & Brumfield Relays 6-1393817-7	Latching Dual Coil	General Purpose	Gold (Au) Silver (Ag)	-40 °C	70 °C	5 A		DPST-NO/NC				250 VAC 250 VDC	Plug In	Socketable	1250 W	1250 VA
TE Connectivity Potter & Brumfield Relays 1393817-7	Latching Dual Coil	General Purpose	Gold (Au) Silver (Ag)	-40 °C	70 °C	2 A	24 VDC	DPDT (2 Form C)	16.5 VDC	400 Ohms	60 mA	125 VAC 150 VDC	Plug In	Socketable		250 VA 300 W
TE Connectivity Potter & Brumfield Relays 3-1393817-9	Latching Dual Coil	General Purpose	Gold (Au) Silver (Ag)	-40 °C	70 °C	2 A	24 VDC	4PDT (4 Form C)	16.5 VDC	400 Ohms	60 mA	125 VAC 150 VDC	Plug In	Socketable		250 VA 300 W
TE Connectivity Potter & Brumfield Relays 1393817-6	Latching Dual Coil	General Purpose	Silver (Ag)	-40 °C	70 °C	5 A		DPST-NO/NC	4 VDC	24.5 Ohms	245 mA	250 VAC 250 VDC	Plug In	Socketable
TE Connectivity Potter & Brumfield Relays 1-1393817-9	Latching Dual Coil	General Purpose	Gold (Au) Silver (Ag)	-40 °C	70 °C	5 A		DPST-NO/NC				250 VAC 250 VDC	Plug In	Socketable
TE Connectivity Potter & Brumfield Relays 1393817-9	Latching Dual Coil	General Purpose	Gold (Au) Silver (Ag)	-40 °C	70 °C	2 A	24 VDC	DPDT (2 Form C)	16.5 VDC	400 Ohms	60 mA	125 VAC 150 VDC	Plug In	Socketable		250 VA 300 W
TE Connectivity Potter & Brumfield Relays 4-1393817-1	Latching Dual Coil	General Purpose	Gold (Au) Silver (Ag)	-40 °C	70 °C	2 A	24 VDC	4PDT (4 Form C)	16.5 VDC	400 Ohms	60 mA	125 VAC 150 VDC	Plug In	Socketable		250 VA 300 W
TE Connectivity Potter & Brumfield Relays 6-1393817-1	Latching Dual Coil	General Purpose	Gold (Au) Silver (Ag)	-40 °C	70 °C	5 A		DPDT (2 Form C)				250 VAC 250 VDC	Plug In	Socketable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1393817 Series

General Purpose Relay 4PDT (4 Form C) Socketable

Documents

Technical documentation and resources

No documents available
