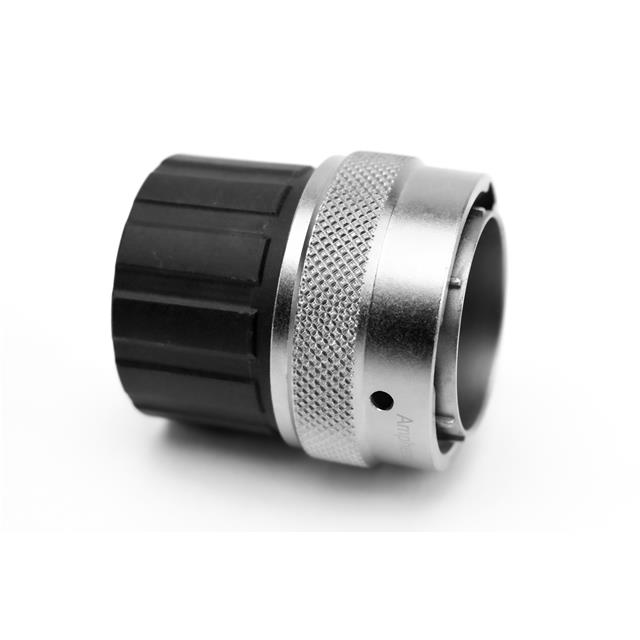

RT0W61210SNHEC03R
ActiveAmphenol Sine Systems Corp
PLUG, 10 POSITION, FEMALE, SHELL
Deep-Dive with AI
Search across all available documentation for this part.
RT0W61210SNHEC03R
ActiveAmphenol Sine Systems Corp
PLUG, 10 POSITION, FEMALE, SHELL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT0W61210SNHEC03R |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 32.14 | |
| 10 | $ 28.14 | |||
| 25 | $ 26.93 | |||
| 50 | $ 26.06 | |||
| 100 | $ 25.19 | |||
| 250 | $ 23.80 | |||
Description
General part information
RT0W61210 Series
10 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
