11-10-W
Active3M (TC)

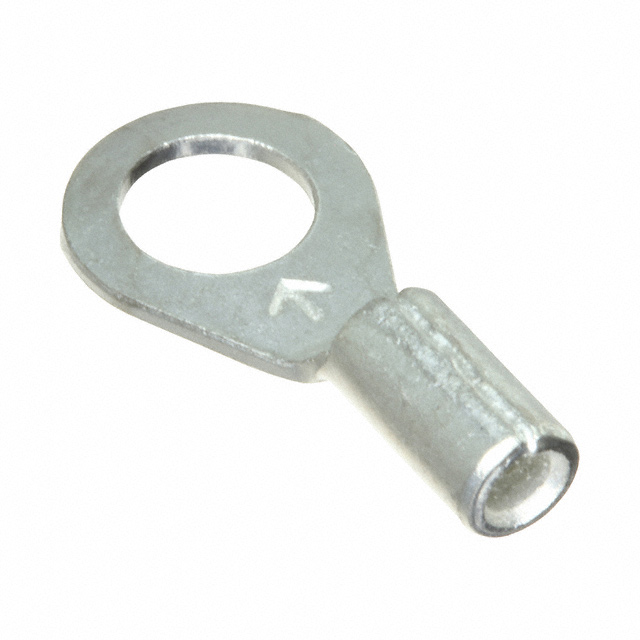

22-18 AWG NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 11-10-W |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall [x] | 17.78 mm |
| Length - Overall [x] | 0.7 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.03 in |
| Thickness | 0.76 mm |
| Width - Outer Edges [y] | 0.33 in |
| Width - Outer Edges [y] | 8.38 mm |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
11-10 Series
Ring Terminal Connector 10 Stud Circular 18-22 AWG Crimp
