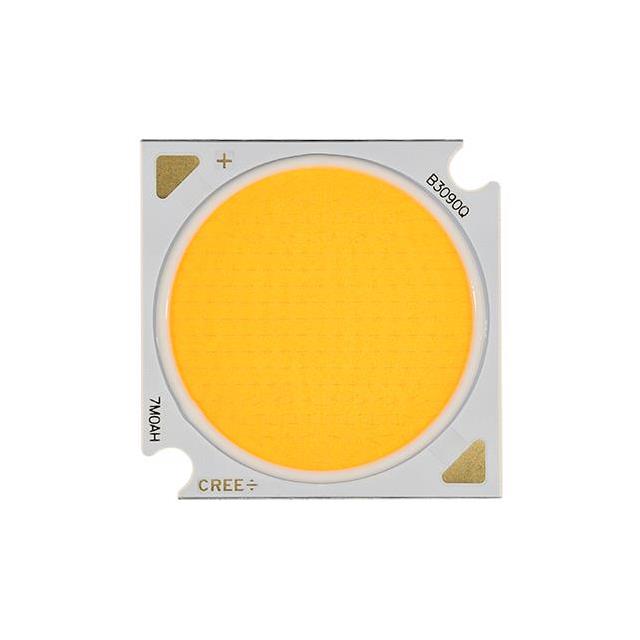

CMB3090-R050-000R0H0A57G

Active

Cree LED

XLAMP CMB LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMB3090-R050-000R0H0A57G

Active

Cree LED

XLAMP CMB LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMB3090-R050-000R0H0A57G

CCT (K)	5700 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	80
Current - Test	1.2 A
Height [z]	1.75 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	23 mm
Lumens/Watt @ Current - Test	136 lm/W
Luminous Flux @ Current/Temperature	11120 lm
Size / Dimension [x]	27.35 mm
Size / Dimension [y]	27.35 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	68.1 V

CMB3090 Series

...

Part	Size / Dimension [x]	Size / Dimension [y]	Lens Type	Configuration	Light Emitting Surface (LES) [diameter]	Current - Test	Type	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	CRI (Color Rendering Index)	Height [z]	Temperature - Test	Viewing Angle	Color	CCT (K)	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature
Cree LED CMB3090-R050-00PQ0U0A35G	27.35 mm	27.35 mm	Flat	Square	23 mm	1.8 A	Chip On Board (COB)	45.4 V	3.6 A	90	1.75 mm	85 °C	115 °	Warm White	3500 K
Cree LED CMB3090-R050-00PR0Z0AL7C	27.35 mm	27.35 mm	Flat	Square	23 mm	1.2 A	Chip On Board (COB)	68.1 V		95	1.75 mm	85 °C	115 °
Cree LED CMB3090-R050-000R0H0A57G	27.35 mm	27.35 mm	Flat	Square	23 mm	1.2 A	Chip On Board (COB)	68.1 V		80	1.75 mm	85 °C	115 °	Cool White	5700 K	136 lm/W	11120 lm
Cree LED CMB3090-R050-00PQ0U0A30H	27.35 mm	27.35 mm	Flat	Square	23 mm	1.8 A	Chip On Board (COB)	45.4 V	3.6 A	90	1.75 mm	85 °C	115 °	Warm White
Cree LED CMB3090-R050-00PR0U0A30H	27.35 mm	27.35 mm	Flat	Square	23 mm	1.2 A	Chip On Board (COB)	68.1 V		90	1.75 mm	85 °C	115 °	Warm White
Cree LED CMB3090-R050-00PQ0U0A30H	27.35 mm	27.35 mm	Flat	Square	23 mm	1.8 A	Chip On Board (COB)	45.4 V	3.6 A	90	1.75 mm	85 °C	115 °	Warm White
Cree LED CMB3090-R050-000Q0U0A31Q	27.35 mm	27.35 mm	Flat	Square	23 mm	1.8 A	Chip On Board (COB)	45.42 V	3.6 A	90	1.75 mm	85 °C	115 °	Warm White	3100 K		10110 lm
Cree LED CMB3090-R050-000Q0U0A30G	27.35 mm	27.35 mm	Flat	Square	23 mm	1.8 A	Chip On Board (COB)	45.4 V	3.6 A	90	1.75 mm	85 °C	115 °	Warm White	3000 K	130 lm/W	10586 lm
Cree LED CMB3090-0000-000R0B0A65E	27.35 mm	27.35 mm	Flat	Square	23 mm	1.2 A	Chip On Board (COB)	68.1 V		70	1.75 mm	85 °C	115 °	Cool White	6500 K	171 lm/W	13968 lm
Cree LED CMB3090-R050-00PQ0U0A35G	27.35 mm	27.35 mm	Flat	Square	23 mm	1.8 A	Chip On Board (COB)	45.4 V	3.6 A	90	1.75 mm	85 °C	115 °	Warm White	3500 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 26.58
		50	$ 26.58
Newark	Each	1	$ 28.80
		1000	$ 19.20
		25000	$ 18.00
		50000	$ 16.92

Description

General part information

CMB3090 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMB3090 White, Cool Square
