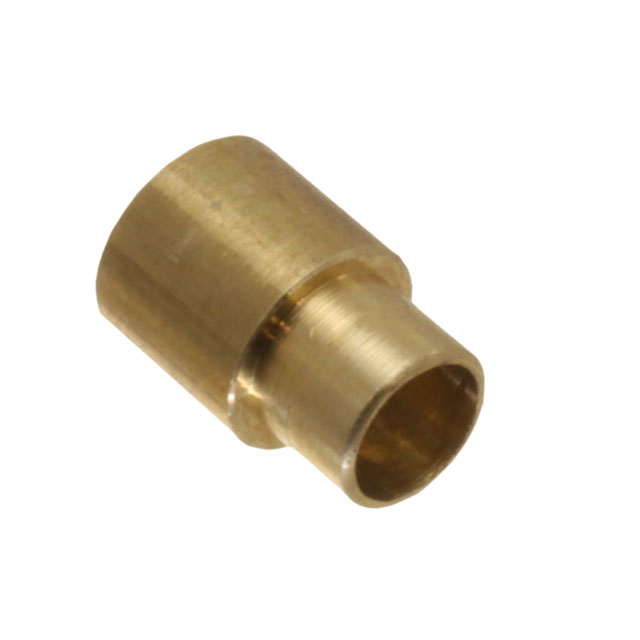

M1501-B-2545-B

Active

RAF Electronic Hardware

4.5MM RD X 4MM X M2.5 THD

Search across all available documentation for this part.

Active

RAF Electronic Hardware

4.5MM RD X 4MM X M2.5 THD

Technical Specifications

Parameters and characteristics for this part

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Threaded/Unthreaded	Between Board Height	Between Board Height	Material	Screw, Thread Size	Gender	Length - Overall [x]	Length - Overall [x]	Plating	Diameter - Inside [diameter]	Diameter - Inside [diameter]
RAF Electronic Hardware M1501-C-2545-AL	4.5 mm	0.177 in	Round Standoff	Threaded	4 mm	0.157 in	Aluminum	M2.5x0.45	Female Swage	7.4 mm	0.291 in
RAF Electronic Hardware M1501-A-2545-SS-20	4.5 mm	0.177 in	Round Standoff	Threaded	4 mm	0.157 in	Stainless Steel	M2.5x0.45	Female Swage	5.9 mm	0.232 in	Passivated
RAF Electronic Hardware M1501-C-2545-SS	4.5 mm	0.177 in	Round Standoff	Threaded	4 mm	0.157 in	Stainless Steel	M2.5x0.45	Female Swage	7.4 mm	0.291 in
RAF Electronic Hardware M1501-B-2545-B	4.5 mm	0.177 in	Round Standoff	Threaded	4 mm	0.157 in	Brass	M2.5x0.45	Female Swage	6.7 mm	0.264 in		0.115 in	2.92 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Round Standoff Threaded M2.5x0.45 Brass 0.157" (4.00mm)
