5-103669-7

Active

TE Connectivity Raychem Cable Protection

1 2.54MM TIN -65℃~+105℃ BRASS 3A STRAIGHT PUSH-PULL,P=2.54MM WIRE TO BOARD CONNECTOR ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAMPMODU MTE Interconnection System ENG_CD_103669_AD1.pdf +4

5-103669-7

Active

TE Connectivity Raychem Cable Protection

1 2.54MM TIN -65℃~+105℃ BRASS 3A STRAIGHT PUSH-PULL,P=2.54MM WIRE TO BOARD CONNECTOR ROHS

Deep-Dive with AI

DocumentsAMPMODU MTE Interconnection System ENG_CD_103669_AD1.pdf +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-103669-7

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Keying Slot
Insulation Color	Black
Insulation Height	13.6 mm
Insulation Height	0.535 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.545 in
Overall Contact Length	13.84 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder, Press-Fit

103669 Series

Part	Features	Insulation Color	Number of Rows	Fastening Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Positions	Shrouding	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating	Termination	Contact Finish - Post	Mounting Type	Contact Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish - Mating	Applications	Contact Shape
TE Connectivity Raychem Cable Protection 103669-9	Keying Slot	Black	1	Latch Holder	13.6 mm	0.535 in	0.1 in	2.54 mm	Brass	2.54 çm	100 çin	Board to Board Cable	10	Shrouded - 4 Wall	0.13 in	3.3 mm	3 A	Header	2.54 µm	100 µin	Thermoplastic	0.545 in	13.84 mm	0.23 in	5.84 mm	Press-Fit Solder	Tin-Lead	Through Hole	Male Pin	UL94 V-0	-65 ░C	105 ░C	All	Tin-Lead	Automotive General Purpose Medical Telecommunications	Square
TE Connectivity Raychem Cable Protection 6-103669-2	Keying Slot	Black	1	Latch Holder	13.6 mm	0.535 in	0.1 in	2.54 mm	Brass	2.54 çm	100 çin	Board to Board Cable	13	Shrouded - 4 Wall	0.13 in	3.3 mm	3 A	Header	2.54 µm	100 µin	Thermoplastic	0.545 in	13.84 mm	0.23 in	5.84 mm	Press-Fit Solder	Tin	Through Hole	Male Pin	UL94 V-0	-65 ░C	105 ░C	All		Automotive General Purpose Medical Telecommunications	Square
TE Connectivity Raychem Cable Protection 103669-1	Keying Slot	Black	1	Latch Holder	13.6 mm	0.535 in	0.1 in	2.54 mm	Brass	2.54 çm	100 çin	Board to Board Cable	2	Shrouded - 4 Wall	0.13 in	3.3 mm	3 A	Header	2.54 µm	100 µin	Thermoplastic	0.545 in	13.84 mm	0.23 in	5.84 mm	Press-Fit Solder	Tin-Lead	Through Hole	Male Pin	UL94 V-0	-65 ░C	105 ░C	All	Tin-Lead	Automotive General Purpose Medical Telecommunications	Square
TE Connectivity Raychem Cable Protection 5-103669-7	Keying Slot	Black	1	Latch Holder	13.6 mm	0.535 in	0.1 in	2.54 mm	Brass	2.54 çm	100 çin	Board to Board Cable	8	Shrouded - 4 Wall	0.13 in	3.3 mm	3 A	Header	2.54 µm	100 µin	Thermoplastic	0.545 in	13.84 mm	0.23 in	5.84 mm	Press-Fit Solder	Tin	Through Hole	Male Pin	UL94 V-0	-65 ░C	105 ░C	All		Automotive General Purpose Medical Telecommunications	Square
TE Connectivity Raychem Cable Protection 6-103669-3	Keying Slot	Black	1	Latch Holder	13.6 mm	0.535 in	0.1 in	2.54 mm	Brass	2.54 çm	100 çin	Board to Board Cable	14	Shrouded - 4 Wall	0.13 in	3.3 mm	3 A	Header	2.54 µm	100 µin	Thermoplastic	0.545 in	13.84 mm	0.23 in	5.84 mm	Press-Fit Solder	Tin	Through Hole	Male Pin	UL94 V-0	-65 ░C	105 ░C	All		Automotive General Purpose Medical Telecommunications	Square
TE Connectivity Raychem Cable Protection 1-103669-0	Keying Slot	Black	1	Latch Holder	13.6 mm	0.535 in	0.1 in	2.54 mm	Brass	2.54 çm	100 çin	Board to Board Cable	11	Shrouded - 4 Wall	0.13 in	3.3 mm	3 A	Header	2.54 µm	100 µin	Thermoplastic	0.545 in	13.84 mm	0.23 in	5.84 mm	Press-Fit Solder	Tin-Lead	Through Hole	Male Pin	UL94 V-0	-65 ░C	105 ░C	All	Tin-Lead	Automotive General Purpose Medical Telecommunications	Square
TE Connectivity Raychem Cable Protection 6-103669-6	Keying Slot	Black	1	Latch Holder	13.6 mm	0.535 in	0.1 in	2.54 mm	Brass	2.54 çm	100 çin	Board to Board Cable		Shrouded - 4 Wall	0.13 in	3.3 mm	3 A	Header	2.54 µm	100 µin	Thermoplastic	0.545 in	13.84 mm	0.23 in	5.84 mm	Press-Fit Solder	Tin	Through Hole	Male Pin	UL94 V-0	-65 ░C	105 ░C	All		Automotive General Purpose Medical Telecommunications	Square
TE Connectivity Raychem Cable Protection 103669-3	Keying Slot	Black	1	Latch Holder	13.6 mm	0.535 in	0.1 in	2.54 mm	Brass	2.54 çm	100 çin	Board to Board Cable	4	Shrouded - 4 Wall	0.13 in	3.3 mm	3 A	Header	2.54 µm	100 µin	Thermoplastic	0.545 in	13.84 mm	0.23 in	5.84 mm	Press-Fit Solder	Tin-Lead	Through Hole	Male Pin	UL94 V-0	-65 ░C	105 ░C	All	Tin-Lead	Automotive General Purpose Medical Telecommunications	Square
TE Connectivity Raychem Cable Protection 103669-6	Keying Slot	Black	1	Latch Holder	13.6 mm	0.535 in	0.1 in	2.54 mm	Brass	2.54 çm	100 çin	Board to Board Cable	7	Shrouded - 4 Wall	0.13 in	3.3 mm	3 A	Header	2.54 µm	100 µin	Thermoplastic	0.545 in	13.84 mm	0.23 in	5.84 mm	Press-Fit Solder	Tin-Lead	Through Hole	Male Pin	UL94 V-0	-65 ░C	105 ░C	All	Tin-Lead	Automotive General Purpose Medical Telecommunications	Square
TE Connectivity Raychem Cable Protection 5-103669-3	Keying Slot	Black	1	Latch Holder	13.6 mm	0.535 in	0.1 in	2.54 mm	Brass	2.54 çm	100 çin	Board to Board Cable	4	Shrouded - 4 Wall	0.13 in	3.3 mm	3 A	Header	2.54 µm	100 µin	Thermoplastic	0.545 in	13.84 mm	0.23 in	5.84 mm	Press-Fit Solder	Tin	Through Hole	Male Pin	UL94 V-0	-65 ░C	105 ░C	All		Automotive General Purpose Medical Telecommunications	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1886	$ 0.94
Digikey	Tube	1	$ 1.70
		10	$ 1.41
		100	$ 1.17
		500	$ 1.02
		1000	$ 0.97
		5000	$ 0.85
		10000	$ 0.80
LCSC	Piece	1	$ 0.99
		30	$ 0.91

Description

General part information

103669 Series

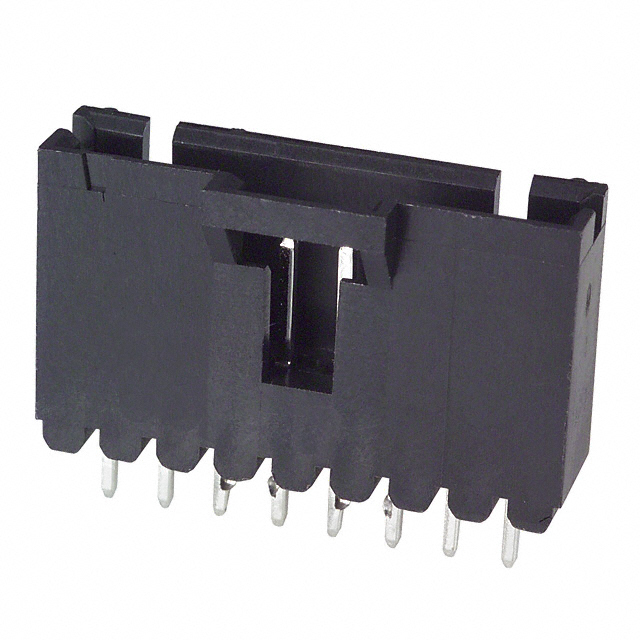

PCB Mount Header, Vertical, Wire-to-Board, 8 Position, 2.54 mm [.1 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, AMPMODU MTE
