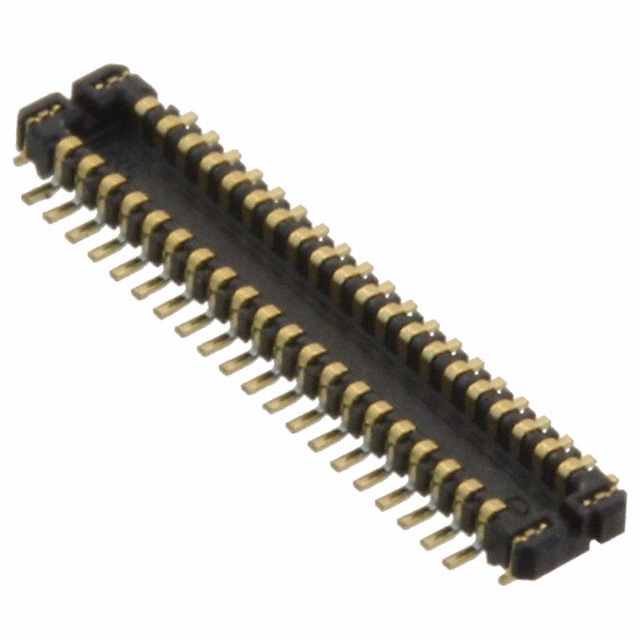

BM10JC-40DP-0.4V(53)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BM10JC-40DP-0.4V(53)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.63 mm
Height Above Board	0.025 in
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board	Height Above Board	Mounting Type	Number of Rows	Features	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Connector Type	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Number of Positions
Hirose Electric USA, Inc. BM10JC-40DP-0.4V(53)	0.63 mm	0.025 in	Surface Mount	2	Solder Retention	0.016 in	0.4 mm	40	Gold	Header Outer Shroud Contacts
Hirose Electric USA, Inc. BM10JC-20DS-0.4V(53)			Surface Mount	2	Solder Retention	0.016 in	0.4 mm	20	Gold	Center Strip Contacts Receptacle	0.8 mm	0.031 in	0.8 mm
Hirose Electric USA, Inc. BM10JC-16DS-0.4V(53)			Surface Mount	2	Solder Retention	0.016 in	0.4 mm		Gold	Center Strip Contacts Receptacle	0.8 mm	0.031 in	0.8 mm	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
