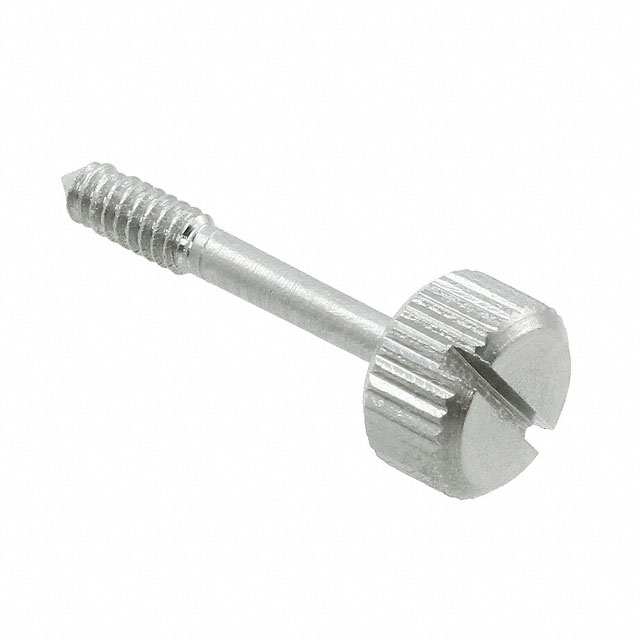

0101-SS-20
ActiveRAF Electronic Hardware
5/16HD X 23/32 X 4-40 THD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0101-SS-20 |
|---|---|
| Drive Type | Slotted |
| Head Diameter [diameter] | 0.313 in |
| Head Diameter [diameter] | 7.94 mm |
| Head Height | 0.188 in |
| Head Height | 4.76 mm |
| Length - Below Head [x] | 16.67 mm |
| Length - Below Head [x] | 0.656 in |
| Length - Overall [x] | 21.43 mm |
| Length - Overall [x] | 0.844 " |
| Material | Stainless Steel |
| Plating | Passivated |
| Screw Head Type | Knob |
| Thread Size | #4-40 |
| Type | Panel Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.50 | |
| 5 | $ 3.33 | |||
| 10 | $ 3.24 | |||
| 25 | $ 3.15 | |||
| 50 | $ 3.06 | |||
| 100 | $ 2.89 | |||
| 250 | $ 2.71 | |||
| 500 | $ 2.63 | |||
| 1000 | $ 2.54 | |||
Description
General part information
0101-SS Series
#4-40 Knob Panel Screw Slotted Drive Stainless Steel
