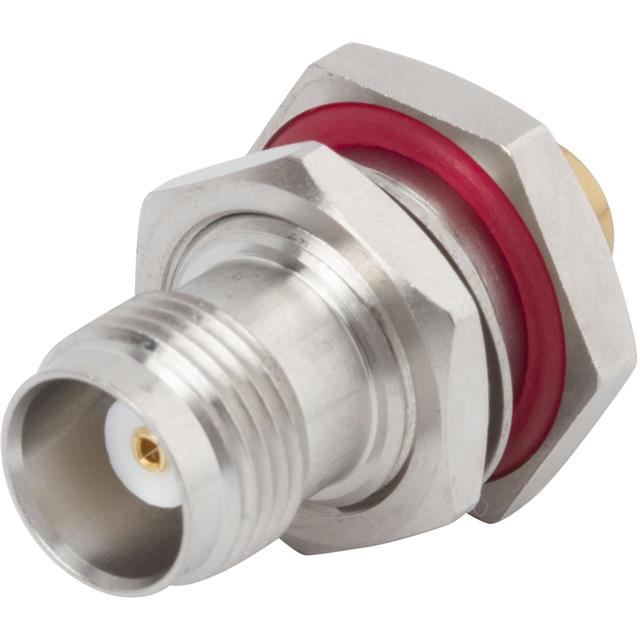

SF4546-6011

Active

Amphenol SV Microwave

CONN PTNC JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN PTNC JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SF4546-6011

Body Material	Stainless Steel
Cable Group	0.085 in
Cable Group	RG-405
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	PTNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	15 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Solder

Part	Frequency - Max [Max]	Center Contact Plating	Impedance	Cable Group	Cable Group	Housing Color	Number of Ports	Shield Termination	Mounting Feature	Connector Type	Body Material	Mating Cycles	Dielectric Material	Contact Termination	Center Contact Material	Connector Style	Includes
Amphenol SV Microwave SF4546-6011	15 GHz	Gold	50 Ohms	0.085 in	RG-405	Silver	1	Solder	Bulkhead - Front Side Nut	Female Socket Jack	Stainless Steel	500	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	PTNC	1 Connector 1 Lockwasher 1 Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 106.22

General part information

PTNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
