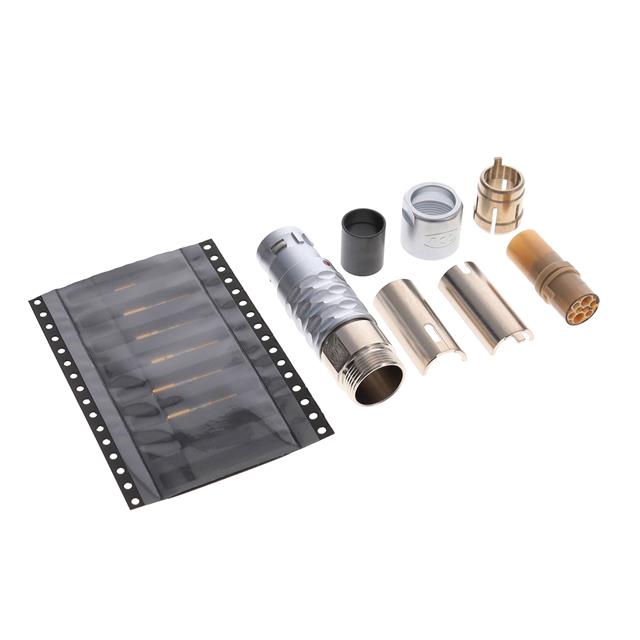

SA2LAC-P08PMM2-8200

Active

ODU

STRAIGHT PLUG, STY SA, SER L, SZ

Search across all available documentation for this part.

Active

ODU

STRAIGHT PLUG, STY SA, SER L, SZ

Technical Specifications

Parameters and characteristics for this part

Specification	SA2LAC-P08PMM2-8200

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Cable Opening [custom]	0.276 in, 0.323 in, 7 mm, 8.2 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Medical (IEC 60601 (2 MOOP/2 MOPP))
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	2
Shielding	Shielded
Termination	Crimp
Voltage Rating	48 VDC

Part	Voltage Rating	Connector Type	Current Rating (Amps)	Fastening Type	Cable Opening [custom]	Shielding	Mounting Type	Orientation	Contact Material	Features	Applications	Contact Finish - Mating	Ingress Protection	Color	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Material	Primary Material	Insert Material	Shell Size - Insert	Termination
ODU SA2LAC-P08PMM2-8200	48 VDC	Male Pins Plug	10 A	Push-Pull	0.276 in 0.323 in 7 mm 8.2 mm	Shielded	Free Hanging (In-Line)	A	Brass	Medical (IEC 60601 (2 MOOP/2 MOPP))	Industrial Medical Military Testing Equipment & Measurement	Gold	IP50	Silver	Chrome over Nickel	-40 °C	120 °C	8	Brass	Metal	Polyetheretherketone (PEEK)	2	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 74.18

General part information

8 Position Circular Connector Plug, Male Pins Crimp
