EP3C10M164C7N

Active

Altera

IC FPGA 106 I/O 164MBGA

Search across all available documentation for this part.

Active

Altera

IC FPGA 106 I/O 164MBGA

Technical Specifications

Parameters and characteristics for this part

Specification	EP3C10M164C7N

Mounting Type	Surface Mount
Number of I/O	106
Number of LABs/CLBs	645
Number of Logic Elements/Cells [custom]	10320
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

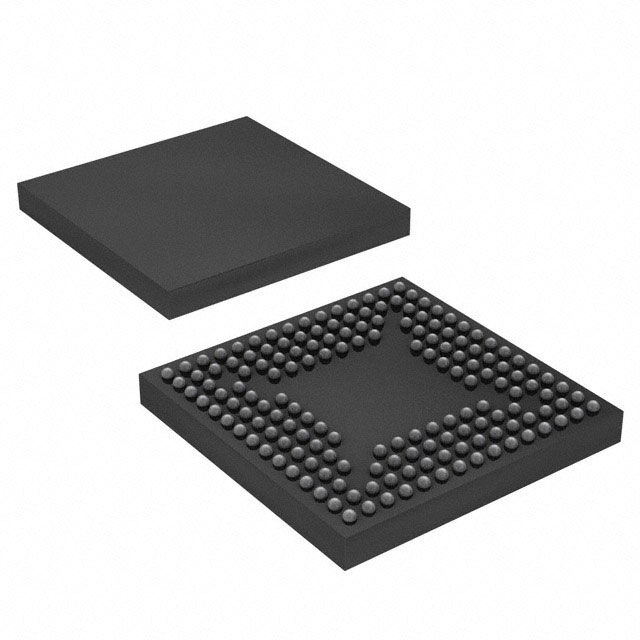

Package / Case	164-TFBGA
Supplier Device Package	164-MBGA (8x8)
Total RAM Bits	423936 Bits

Part	Number of Logic Elements/Cells [custom]	Mounting Type	Total RAM Bits	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Number of I/O	Supplier Device Package	Number of LABs/CLBs
Altera EP3C10E144C7	10320	Surface Mount	423936 Bits	144-LQFP Exposed Pad	0 °C	85 °C	94	144-EQFP (20x20)	645
Altera EP3C10M164C7N	10320	Surface Mount	423936 Bits	164-TFBGA	0 °C	85 °C	106	164-MBGA (8x8)	645
Altera EP3C10F256C6N	10320	Surface Mount	423936 Bits	256-LBGA	0 °C	85 °C	182	256-FBGA (17x17)	645
Altera EP3C10E144I7N	10320	Surface Mount	423936 Bits	144-LQFP Exposed Pad	-40 C	100 °C	94	144-EQFP (20x20)	645
Altera EP3C10E144C7	10320	Surface Mount	423936 Bits	144-LQFP Exposed Pad	0 °C	85 °C	94	144-EQFP (20x20)	645
Altera EP3C10E144I7	10320	Surface Mount	423936 Bits	144-LQFP Exposed Pad	-40 C	100 °C	94	144-EQFP (20x20)	645
Altera EP3C10U256C7	10320	Surface Mount	423936 Bits	256-LFBGA	0 °C	85 °C	182	256-UBGA (14x14)	645

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	348	$ 64.80

General part information

Cyclone® III Field Programmable Gate Array (FPGA) IC 106 423936 10320 164-TFBGA
