233057-01
ActiveQualtek
CRD 16AWG NEMA5-15P - 320C13 10'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
233057-01
ActiveQualtek
CRD 16AWG NEMA5-15P - 320C13 10'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 233057-01 |
|---|---|
| 1st Connector | NEMA 5-15P |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating (Amps) | 13 A |
| Features | Hospital Grade |
| Length | 10 ft |
| Length | 3.05 m |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 125 VAC |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.98 | |
| 10 | $ 9.97 | |||
| 25 | $ 9.02 | |||
| 50 | $ 8.37 | |||
| 100 | $ 7.78 | |||
| 250 | $ 7.08 | |||
| 500 | $ 6.61 | |||
| 1000 | $ 6.19 | |||
Description
General part information
233057 Series

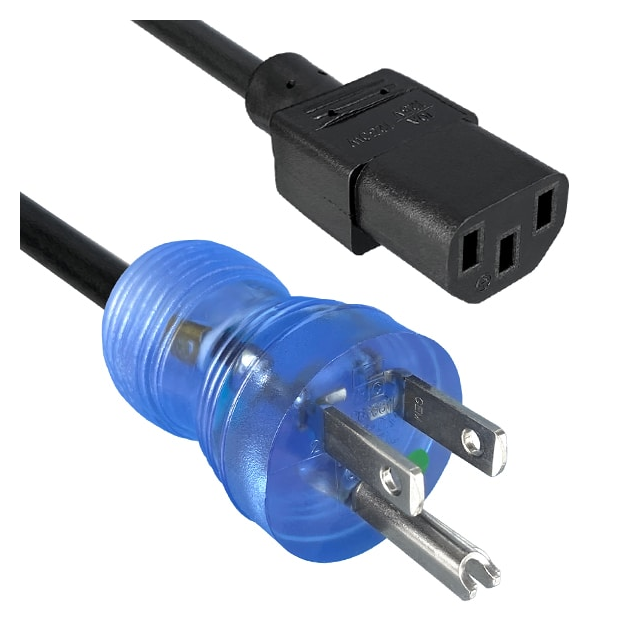

10.00' (3.05m) Power Cord Black NEMA 5-15P To IEC 320-C13 SJT
